OPW® 295SA-0135 OPW 295SA-0135 | Tipco Technologies
OPW® 295SA-0135
Send Print
  1. pin-int

OPW® 295SA-0135

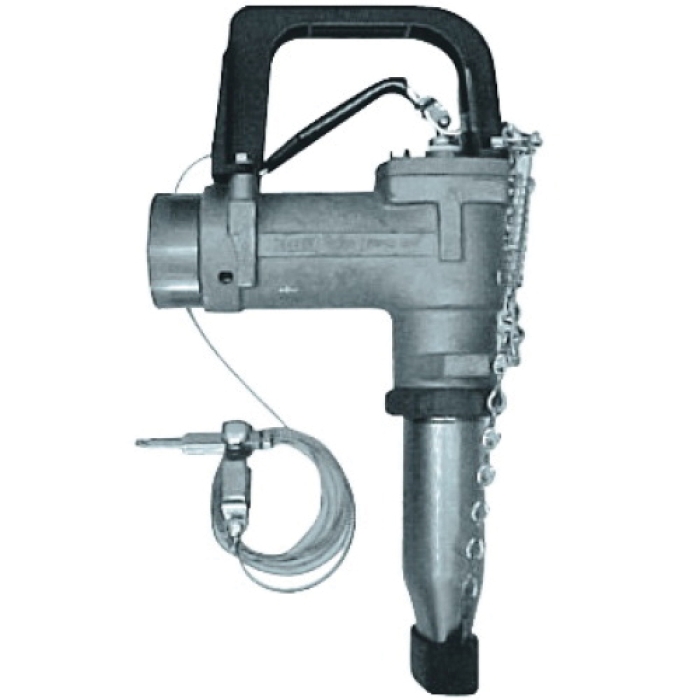

OPW® 295SA-0135 Cast Aluminum Aircraft Nozzle, 1 in NPT

  • Manufacturers: Dover Corporation
  • Brand Name: OPW®
  • Tipco Part No: OPW 295SA-0135
  • MPN: 295SA-0135
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

OPW® Aircraft Nozzle, 1 in Pipe, Connection Type: NPT, 110 psi, Spout Size: 1 in OD, Cast Aluminum

Product Type      :      Aircraft Nozzle
Spout Size      :      1 in OD
Material      :      Cast Aluminum
Pipe Size      :      1 in
Connection Type      :      NPT
Pressure Rating      :      110 psi
  • Aluminum body - lighter weight, easier to maneuver
  • Dual poppets - easy to open nozzle against high inlet pressures
  • Color-coded composite lever guards - helps distinguish between AVGAS and Jet A, easily replaced in lever guard kit
  • Right angle design - provides larger lever area for better grip and easier control
  • Vinyl-coated lever - insulates fingers against cold
  • 100 mesh strainer - prevents foreign matter from entering fuel tank, easy to remove and clean
  • Dust cap keeps spout free from dirt and stops fuel drippage when connected
  • Adjustable dash pot - permits adjusting the main poppet closure rate over a wide range of flows to overcome line shock with minimum afterflow
  • Easily replaced spout - the spout is easily threaded into the body
  • Built-in swivel - eliminates twisting and kinking of the hose
  • This swivel is electroless nickel-plated and has full-bearing surfaces

Standards/Certifications: UL 2586 Listed

  • cUL Listed

    Applications: For overwing aircraft service
