NOSHOK® 25-910-2000-psi/kPa
NOSHOK® Pressure Gauge, 2.5" ABS Case, Copper Alloy Internals, 2000 psi/kPa, 1/4 NPT Male Back Conn, Glycerin Filled
- Manufacturers: NOSHOK
- Brand Name: NOSHOK®
- Tipco Part No: NOS 25-910-2000-PSI/KPA
- MPN: 25-910-2000-psi/kPa
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
NOSHOK® Pressure Gauge, 2.5" ABS Case, Copper Alloy Internals, 2000 psi/kPa, 1/4 NPT Male Back Conn, Glycerin Filled
California residents see Prop 65 WARNINGS
| Material | : | Acrylonitrile Butadiene Styrene (ABS) |
| Product Type | : | Pressure Gauge |
| Connection Size | : | 1/4 in NPT |
| Mounting Type | : | Back |
| Case Material | : | ABS |
| Series | : | 900 |
| Connection Type | : | National Pipe Thread (NPT) |
| Lens Material | : | Acrylic |
| Fill Liquid | : | Glycerin |
| Pointer Material | : | Molded Plastic |
| Accuracy | : | +/-1.6% Full Scale |
| Lens/Display Material | : | Acrylic; Ultrasonically Welded to the Case |
| Case Type | : | Acrylonitrile Butadiene Styrene (ABS) Case, Liquid Filled, Back Connection |

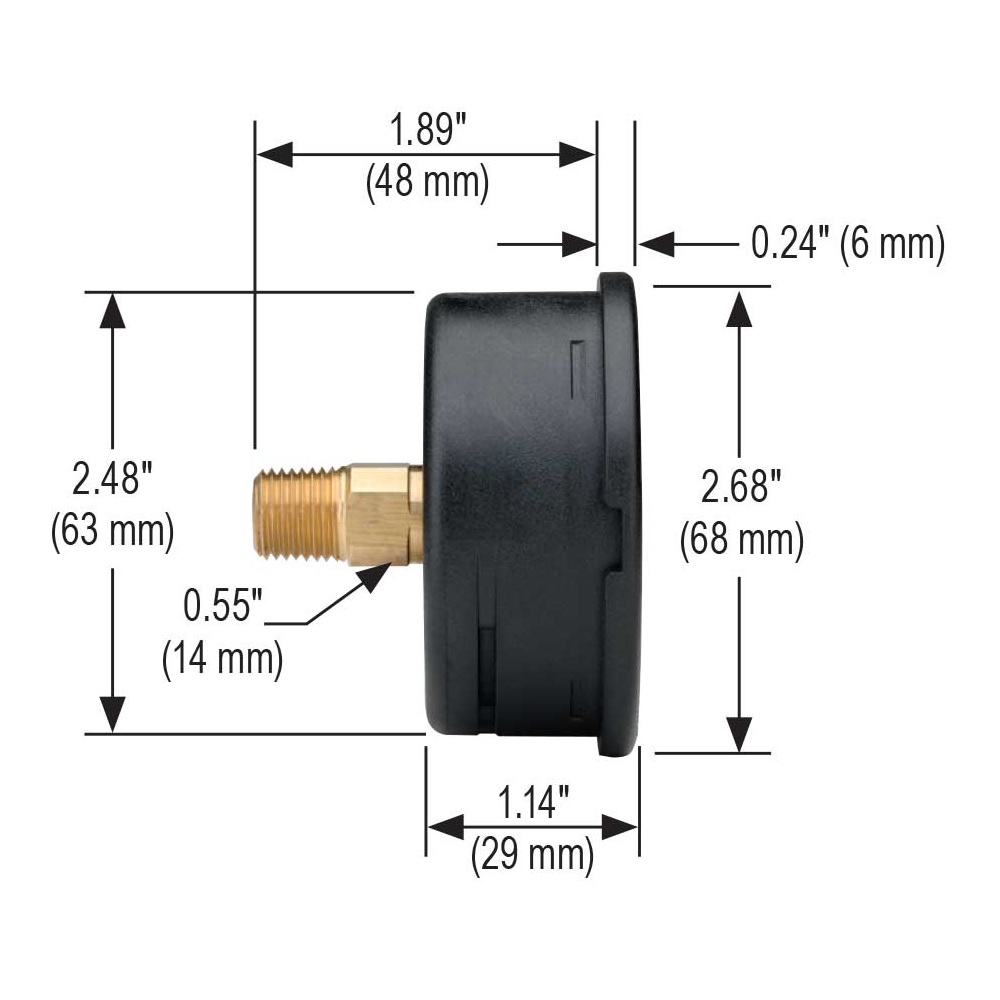

| Dimensions | : | 2.68 in W x 2.13 in D |
| Scale Option | : | psi/kPa |
| Pressure Low | : | 0 PSI |
| Pressure High | : | 2,000 PSI |
| Connection Mount | : | Back |
| Measuring System | : | psi, kPa |
| Gauge Size | : | 2.5 in |
| Pressure Range | : | 0 - 2000 psi |
| Movement | : | Brass and Nylon with Highly Polished Bearing Surfaces |
| Dial / Display Description | : | Molded Plastic, White Background with Black Primary Scale & Red Secondary Scale. Ultraviolet (UV) Resistant. |
| Dial Size | : | 2-1/2 in |
| Ambient Temperature Low | : | -20 deg C |
| Ambient Temperature Low | : | -4 deg F |
| Ambient Temperature High | : | 140 deg F |
| Ambient Temperature High | : | 60 deg C |
| Temperature Rating | : | -4 to 140 deg F Media, -4 to 140 deg F Ambient |
| Display Type | : | Analog |
| Media Temperature Low | : | -20 deg C |
| Media Temperature Low | : | -4 deg F |
| Media Temperature High | : | 140 deg F |
| Media Temperature High | : | 60 deg C |
| Cover Ring Material | : | Polished 304 Stainless Steel |
| Scale | : | psi/kPa |
- High-quality liquid filled gauge
- Vacuum and compound ranges through 0 - 15000 psi
- Copper alloy and brass wetted parts
- Case with safety relief plug
- Lens - ultrasonically welded to the case
- Molded plastic dial, white background with black primary scale and red secondary scale, UV-resistant
- Movement - brass and nylon with highly polished bearing surfaces
- Fill liquid glycerin and water
- Measuring element - coiled safety tube
Applications: Ideal for applications including automotive, construction, hydraulics and pneumatics, power generation, transportation and water management
Catalog/Catalog Cut Sheet
