Aeroquip® FC2326-06S AER FC2326-06S | Tipco Technologies
Aeroquip® FC2326-06S
Send Print
  1. pin-int

Aeroquip® FC2326-06S

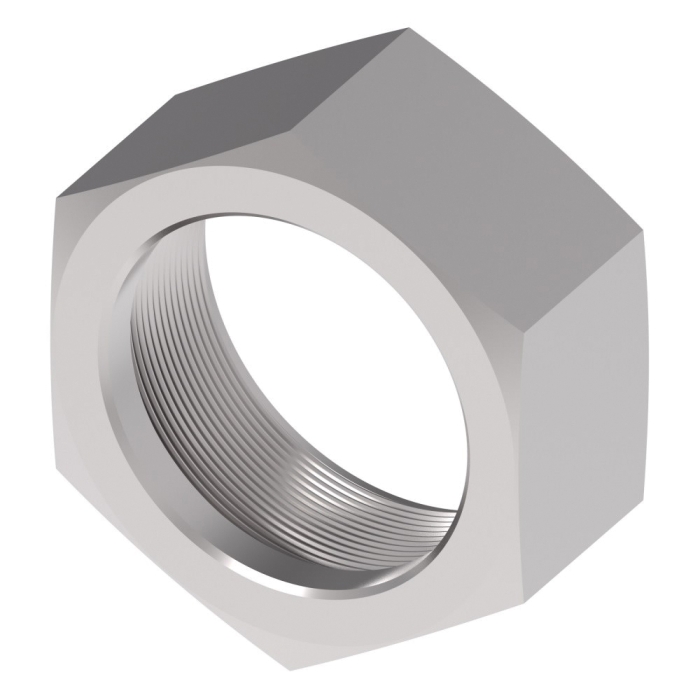

Aeroquip® FC2326 Zinc Clear Trivalent Chromate Carbon Steel Nut, 11/16 in Female O-Ring Face Seal

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC2326-06S
  • MPN: FC2326-06S
  • UPC: 678146143754
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® FC2326 Zinc Clear Trivalent Chromate Carbon Steel Nut, Connection Size 1: 11/16 in, Gender 1: Female, Connection Type 1: O-Ring Face Seal

Series      :      FC2326
Connection Size 1      :      11/16 in
Connection Size 2      :      3/8 in
Gender 1      :      Female
Gender 2      :      Female
Connection 1      :      11/16 in ORFS
Shape      :      Component
Connection 2      :      3/8 in Braze
Thread Size 1      :      11/16-16
Finish      :      Zinc Clear Trivalent Chromate
Dimension Standards      :      SAE 520110
Length      :      0.67 in
Fitting Type      :      Nut
Width      :      0.8125 in
Height      :      0.8125 in
Material      :      Carbon Steel
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      Braze
