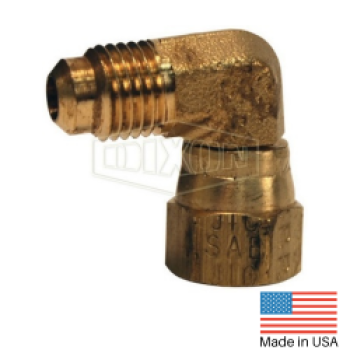

Dixon® 90 deg Elbow, Connection Type 1: SAE 45 deg Flare Swivel, Connection Size 1: 1/4 in, Thread Size 1: 7/16-20, Connection Type 2: Threaded, Connection Size 2: 1/4 in, 1400 psi, Brass, For Use With: Copper, Brass, Aluminum and Welded Steel Hydraulic Tubing, Dimension Standards: SAE J512 and J513, -65 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | 90 deg Elbow |
| Connection Size 2 | : | 1/4 in |
| Pressure Rating | : | 1400 psi |
| Material | : | Brass |
| For Use With | : | Copper, Brass, Aluminum and Welded Steel Hydraulic Tubing |
| Dimension Standards | : | SAE J512 and J513 |
| Connection 1 | : | 1/4 in Flare Swivel |
| Temperature Rating | : | -65 to 250 deg F |
| Connection Type 1 | : | SAE 45 deg Flare Swivel |
| Connection Size 1 | : | 1/4 in |
| Thread Size 1 | : | 7/16-20 |
| Connection 2 | : | 1/4 in Threaded |
| Connection Type 2 | : | Threaded |
- Economical fitting resists mechanical pullout
- Easy to disassemble and may be reassembled repeatedly, for a leak-proof connection
- Manufactured from CA 360, CA 345 or CA377 brass
Applications: Manufactured especially for hard-to-hold liquids and gases
Instructions:
- Cut tubing squarely and clean tube end thoroughly to remove burrs.
- Place nut onto tube.
- Place threaded end of nut toward end of tube.
- Flare tube end with flaring tool to provide 45 deg flare.
- Clamp tube flare between nut and nose of fitting body by screwing nut on finger tight.
- Tighten with a wrench an additional 1/4 turn for metal to metal seal.
Safety Notes:
- The psi rating given is based on a temperature of 73 deg F using copper tubing.
- Temperature and type of tubing used are important factors in working pressure ranges.
