Aeroquip® 68X3

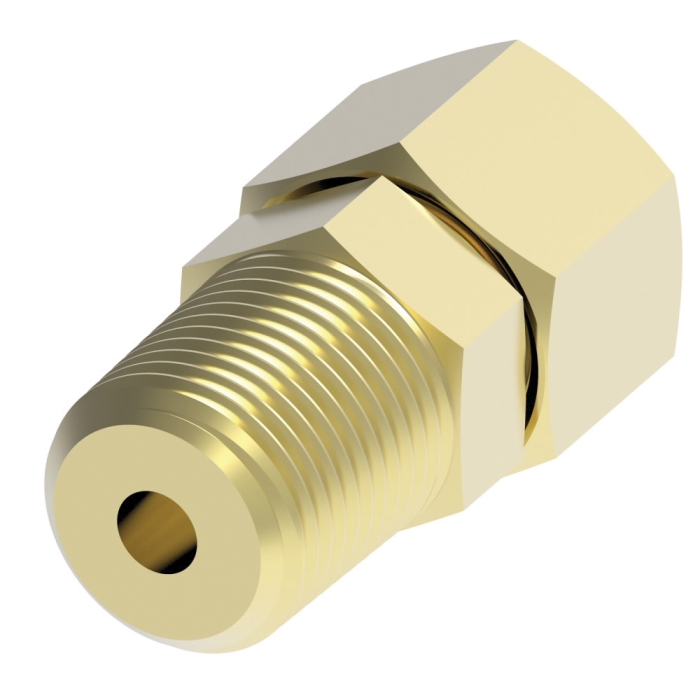

Aeroquip® 68x Nickel-Plated Brass Straight Connector, 3/16 in Female Compression x 1/8 in MNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 68X3
  • MPN: 68X3
  • UPC: 639789259684
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Straight Connector, 68x Series, Connection Type 1: Compression, Gender 1: Female, Connection Size 1: 3/16 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/8 in, Thread Size 2: 1/8-27, Hex Size: 0.437 x 0.4375 in, 2000 psi, Brass, Finish: Nickel-Plated, Dimensions: 1.03 in L x 0.437 in W x 0.437 in H, Dimension Standards: SAE 060102BA, -65 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Straight Connector
Gender 2      :      Male
Connection Size 2      :      1/8 in
Thread Size 2      :      1/8-27
Series      :      68x
Hex Size      :      0.437 x 0.4375 in
Pressure Rating      :      2000 psi
Material      :      Brass
Finish      :      Nickel-Plated
Dimensions      :      1.03 in L x 0.437 in W x 0.437 in H
Dimension Standards      :      SAE 060102BA
Connection 1      :      3/16 in Compression
Temperature Rating      :      -65 to 250 deg F
Connection Type 1      :      Compression
Gender 1      :      Female
Connection Size 1      :      3/16 in
Connection 2      :      1/8 in NPT
Connection Type 2      :      NPTF

Applications: Hydraulic, instrumentation, pneumatic systems
