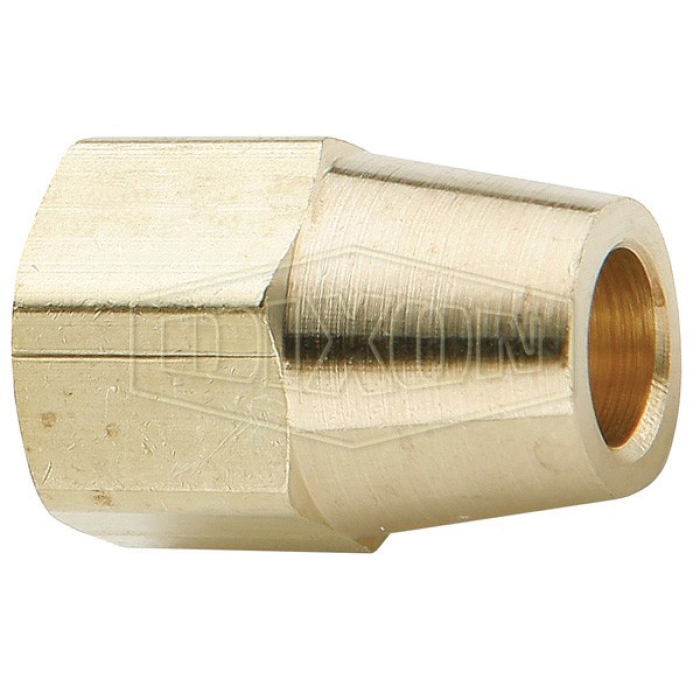

Dixon® Long Nut, Connection Type 1: Compression, Connection Size 1: 1/4 in, Hex Size: 1/2 in, 300 psi, Brass, Dimensions: 3/4 in L, Dimension Standards: SAE J512, SAE 060111, -65 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Nut |
| Hex Size | : | 1/2 in |
| Pressure Rating | : | 300 psi |
| Material | : | Brass |
| Dimensions | : | 3/4 in L |
| Dimension Standards | : | SAE J512, SAE 060111 |
| Connection 1 | : | 1/4 in Compression |
| Temperature Rating | : | -65 to 250 deg F |
| Connection Type 1 | : | Compression |
| Connection Size 1 | : | 1/4 in |
Applications: Use with copper, aluminum and thermoplastic tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved
Instructions:
- No flaring, soldering or other preparation of tubing necessary to assemble.
- Slide nut, then sleeve onto tubing.
- The thread end of the nut must face out.
- Insert tube into the fitting.
- Be sure the tube is bottomed on the fitting shoulder.
- Assemble nut to body, and tighten hand tight.
- Then follow the number of appropriate wrench turns for the given size.
Safety Notes:
- Not recommended for steel tubing.
- Not recommended for applications using gaseous media.
