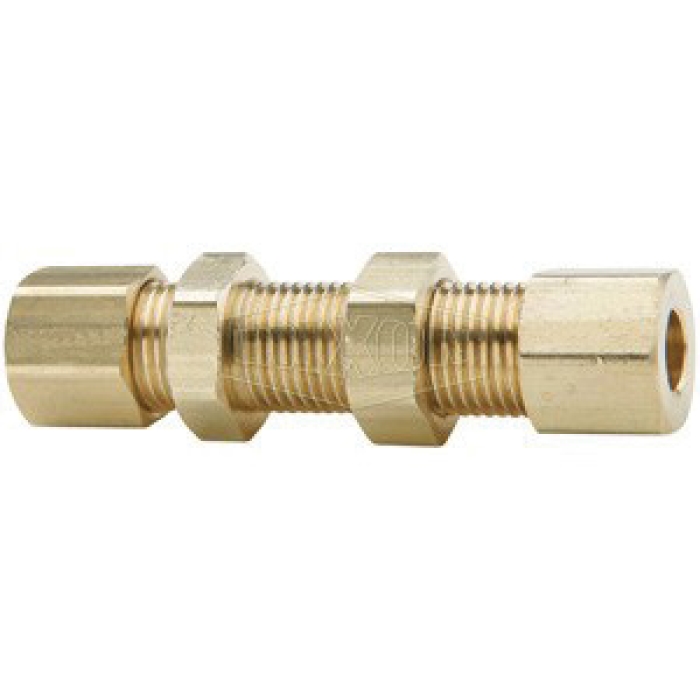

Dixon® Bulkhead Union, Connection Type 1: Compression, Connection Size 1: 3/8 in, Thread Size 1: 9/16-24, Connection Type 2: Compression, Connection Size 2: 3/8 in, Thread Size 2: 9/16-24, Hex Size: 11/16 in, 200 psi, Brass, For Use With: Copper, Aluminum and Thermoplastic Tubing, Dimensions: 2.42 in L, Dimension Standards: SAE J512, -65 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Union |
| Connection Size 2 | : | 3/8 in |
| Thread Size 2 | : | 9/16-24 |
| Hex Size | : | 11/16 in |
| Pressure Rating | : | 200 psi |
| Material | : | Brass |
| For Use With | : | Copper, Aluminum and Thermoplastic Tubing |
| Dimensions | : | 2.42 in L |
| Dimension Standards | : | SAE J512 |
| Connection 1 | : | 3/8 in Compression |
| Temperature Rating | : | -65 to 250 deg F |
| Connection Type 1 | : | Compression |
| Connection Size 1 | : | 3/8 in |
| Thread Size 1 | : | 9/16-24 |
| Connection 2 | : | 3/8 in Compression |
| Connection Type 2 | : | Compression |
- Underwriter's Laboratories listed for flammable liquid
Applications: For low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
Instructions:
- No flaring, soldering or other preparation of tubing necessary to assemble.
- Slide nut, then sleeve onto tubing.
- The thread end of the nut must face out.
- Insert tube into the fitting.
- Be sure the tube is bottomed on the fitting shoulder.
- Assemble nut to body, and tighten hand tight.
- Then follow the number of appropriate wrench turns for the given size.
Safety Notes:
- Not recommended for steel tubing.
- Not recommended for applications using gaseous media.
Catalog/Catalog Cut Sheet
