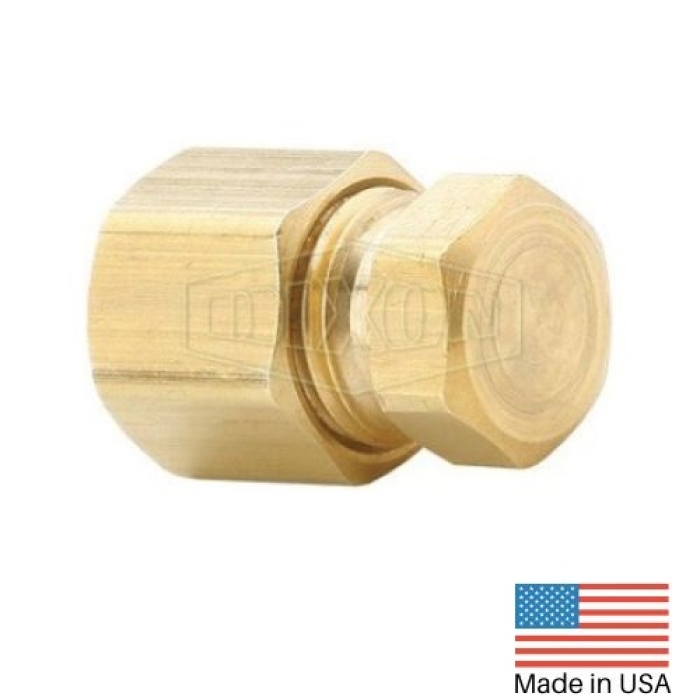

Dixon® Seal Plug, Connection Type 1: Compression, Connection Size 1: 1/4 in, Thread Size 1: 7/16-24, Hex Size: 7/16 in, Brass, Dimensions: 0.74 in L, -65 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Hex Size | : | 7/16 in |
| Material | : | Brass |
| Dimensions | : | 0.74 in L |
| Connection 1 | : | 1/4 in Compression |
| Temperature Rating | : | -65 to 250 deg F |
| Connection Type 1 | : | Compression |
| Connection Size 1 | : | 1/4 in |
| Thread Size 1 | : | 7/16-24 |
- Underwriter's Laboratories listed for flammable liquid, SAE J-512, ASA
Applications: Use with copper, aluminum and thermoplastic tubing. Manufactured for low and medium-pressure tubing connection work where excessive vibration or tube movement is not involved
Instructions:
- No flaring, soldering or other preparation of tubing necessary to assemble.
- Slide nut, then sleeve onto tubing.
- The thread end of the nut must face out.
- Insert tube into the fitting.
- Be sure the tube is bottomed on the fitting shoulder.
- Assemble nut to body, and tighten hand tight.
- Then follow the number of appropriate wrench turns for the given size.
Safety Notes:
- Not recommended for steel tubing.
- Not recommended for applications using gaseous media.
