Dixon® 1420407C

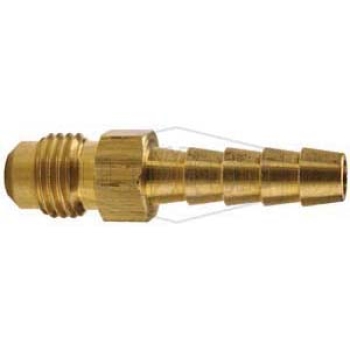

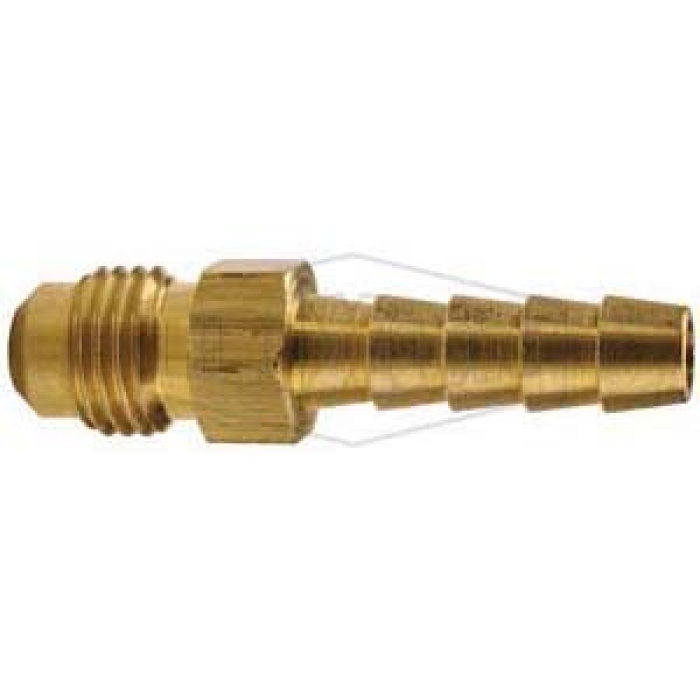

Dixon® 1420407C Brass Hose Barb, 1/4 in Hose Barb x 1/4 in Male SAE 45 deg

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 1420407C
  • MPN: 1420407C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Hose Barb, Connection Type 1: Hose Barb, Connection Size 1: 1/4 in, Connection Type 2: SAE 45 deg, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 7/16-20 UNF, Hex Size: 7/16 in, Brass, For Use With: Hose Clamps or Crimped Ferrules, Dimensions: 1.72 in L

California residents see Prop 65 WARNINGS

Fitting Type      :      Hose Barb
Gender 2      :      Male
Connection Size 2      :      1/4 in
Thread Size 2      :      7/16-20 UNF
Hex Size      :      7/16 in
Material      :      Brass
For Use With      :      Hose Clamps or Crimped Ferrules
Dimensions      :      1.72 in L
Connection 1      :      1/4 in Hose Barb
Connection Type 1      :      Hose Barb
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in SAE
Connection Type 2      :      SAE 45 deg
