Danfoss 1168X6X6

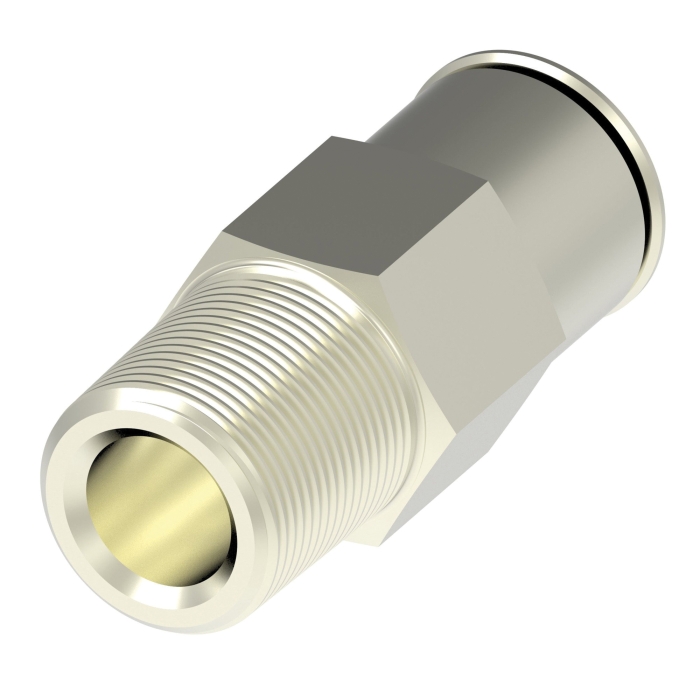

Danfoss 1168x Series 1168X6X6 Connector, 3/8 in x 3/8 in, Push-to-Connect x NPT, Brass, Nickel-Plated

  • Manufacturers: Danfoss
  • Brand Name: Danfoss
  • Tipco Part No: AER 1168X6X6
  • MPN: 1168X6X6
  • UPC: 725975036068
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Allen wrench use permits close quarter installation not possible with a standard wrench.

Danfoss Connector, Male Gender 2, Connection Size 2: 3/8, 1168X Series, Brass, Nickel-Plated, Dimensions: 1.14 in L x 0.86 in W, 3/8 in Push-to-Connect Connection 1, Use With: PT230, TP160 Nylon, PT240 Polyethylene Tubings, Connection Type 1: Push-to-Connect, Connection Size 1: 3/8, 3/8 in Male NPT Connection 2, Connection Type 2: NPT

Fitting Type      :      Connector
Gender 2      :      Male
Connection Size 2      :      3/8 in
Series      :      1168X Series
Material      :      Brass
Finish      :      Nickel-Plated
Dimensions      :      1.14 in L x 0.86 in W
Connection 1      :      3/8 in Push-to-Connect
For Use With      :      PT230, TP160 Nylon, PT240 Polyethylene Tubings
Connection Type 1      :      Push-to-Connect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in Male NPT
Connection Type 2      :      NPT
  • Ease of assembly
  • No tools required, reusability of connectors and the time savings of assembly and disassembly
  • These flow controls have a simple design, but offer excellent ability to control the speed of a cylinder or motor
  • pdfCatalog https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_1162X2_Catalog.pdf
