Dixon® H5262L-A

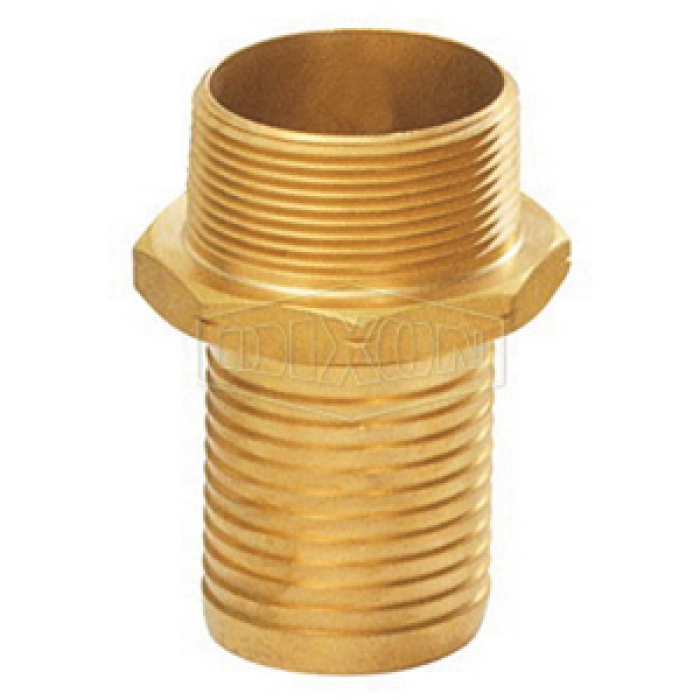

Dixon® 520-H Brass Permanently Attached Petroleum Coupling, 3 in Hose x 3 in MNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN H5262L-A
  • MPN: H5262L-A
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Permanently Attached Petroleum Coupling, 520-H Series, Connection Type 1: Hose, Connection Size 1: 3 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3 in, Hex Size: 4-1/16 in, Brass, Dimensions: 5-3/4 in L

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupling
Gender 2      :      Male
Connection Size 2      :      3 in
Series      :      520-H
Hex Size      :      4-1/16 in
Material      :      Brass
Dimensions      :      5-3/4 in L
Connection 1      :      3 in Hose
Connection Type 1      :      Hose
Connection Size 1      :      3 in
Connection 2      :      3 in NPT
Connection Type 2      :      NPT
  • Male has octagonal facets for tightening with a wrench
  • The stem is expanded to nominal ID of hose for a rigid, uniform, full-flow area
  • Couplings are pre-lubricated for assembly
  • Stems are machined from bar stock or solid brass forgings
  • Designed for internal expansion only

Applications: For discharge and suction service and commonly used in the transfer of fuel to homes, airplanes, ships

Safety Notes:

  • Do not interchange with other manufacturer's fittings.
  • Designed for internal expansion only.
  • Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Consult Dixon® for recommendations on usage.
  • Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material.
  • Compatibility of ferrule material with the environment in which it will be used is recommended.
  • Consult the Compatibility Chart or the Dixon® factory for material compatibility.
  • For applications other than the ones list, please consult Dixon®.
