Adaptall 5204L-28
Send Print
  1. pin-int

Adaptall 5204L-28

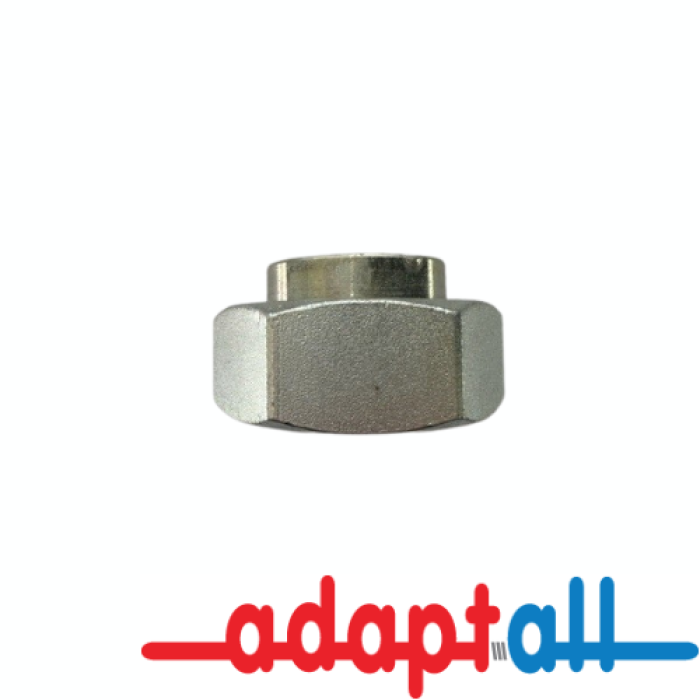

Adaptall 5204L Carbon Steel Cap, L28 Female Metric DIN 24° Tube

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5204L-28
  • MPN: 5204L-28
  • UPC: 5204L-028
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5204L Carbon Steel Cap, Connection Size 1: L28, Gender 1: Female, Connection Type 1: Metric DIN 24° Tube 160 bar

Series      :      5204L
Connection Size 1      :      L28
Gender 1      :      Female
Connection 1      :      28 mm Light
Shape      :      Cap
Thread Size 1      :      M36 x 2
Dimension Standards      :      DIN 2353, ISO 8434-1
Length      :      21 mm
Fitting Type      :      Cap
Hex Size      :      41 mm
Material      :      Carbon Steel
Pressure Rating      :      160 bar
Connection Type 1      :      Metric DIN 24° Tube
