Adaptall 5059BJL-22-12
Send Print
  1. pin-int

Adaptall 5059BJL-22-12

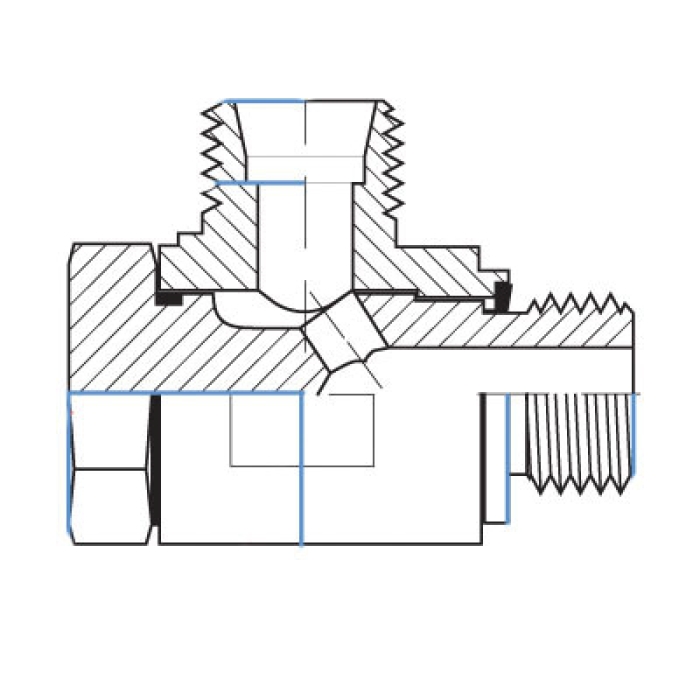

Adaptall 5059BJ Carbon Steel 90 deg Light-Duty Elbow, 22 mm Male Metric Banjo DIN Tube x 3/4 in Male BSPP Elastomeric Seal

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5059BJL-22-12
  • MPN: 5059BJL-22-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 90 deg Light-Duty Elbow, Series: 5059BJ, Connection Type 1: Metric Banjo DIN Tube, Gender 1: Male, Connection Size 1: 22 mm, Thread Size 1: M30 x 2, Connection Type 2: BSPP Elastomeric Seal, Gender 2: Male, Connection Size 2: 3/4 in, Thread Size 2: G 3/4-14, Carbon Steel, Dimension Standards: BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6

Series      :      5059BJ
Connection Size 1      :      22 mm
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      22 mm Metric
Shape      :      90 deg Elbow
Connection 2      :      3/4 in BSPP
Thread Size 1      :      M30 x 2
Thread Size 2      :      G 3/4-14
Dimension Standards      :      BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Fitting Type      :      90 deg Elbow
Material      :      Carbon Steel
Connection Type 1      :      Metric Banjo DIN Tube
Connection Type 2      :      BSPP Elastomeric Seal
