Adaptall 5063LL-06-02C
Send Print
  1. pin-int

Adaptall 5063LL-06-02C

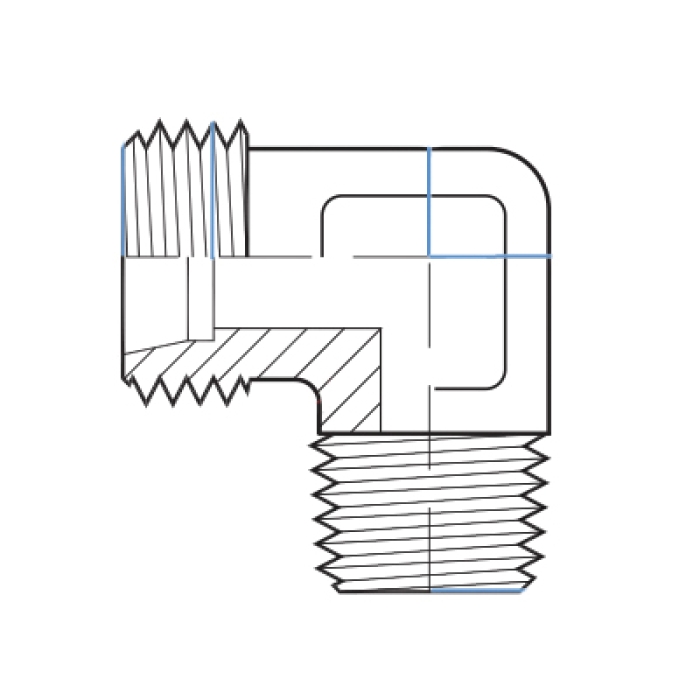

Adaptall 5063 Carbon Steel 90 deg Extra Light-Duty Elbow, 6 mm Male DIN 24 deg Tube x 1/8 in Male BSPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5063LL-06-02C
  • MPN: 5063LL-06-02C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 90 deg Extra Light-Duty Elbow, Series: 5063, Connection Type 1: DIN 24 deg Tube, Gender 1: Male, Connection Size 1: 6 mm, Thread Size 1: M10 x 1, Connection Type 2: BSPT, Gender 2: Male, Connection Size 2: 1/8 in, Thread Size 2: R 1/8-28, Carbon Steel, Dimension Standards: DIN 2353, DIN EN 10226-1, ISO 7-1, ISO 8434-1

Series      :      5063
Connection Size 1      :      6 mm
Connection Size 2      :      1/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      6 mm Metric
Shape      :      90 deg Elbow
Connection 2      :      1/8 in BSPT
Thread Size 1      :      M10 x 1
Thread Size 2      :      R 1/8-28
Dimension Standards      :      DIN 2353, DIN EN 10226-1, ISO 7-1, ISO 8434-1
Fitting Type      :      90 deg Elbow
Material      :      Carbon Steel
Connection Type 1      :      DIN 24 deg Tube
Connection Type 2      :      BSPT
