Adaptall 5063S-25-16
Send Print
  1. pin-int

Adaptall 5063S-25-16

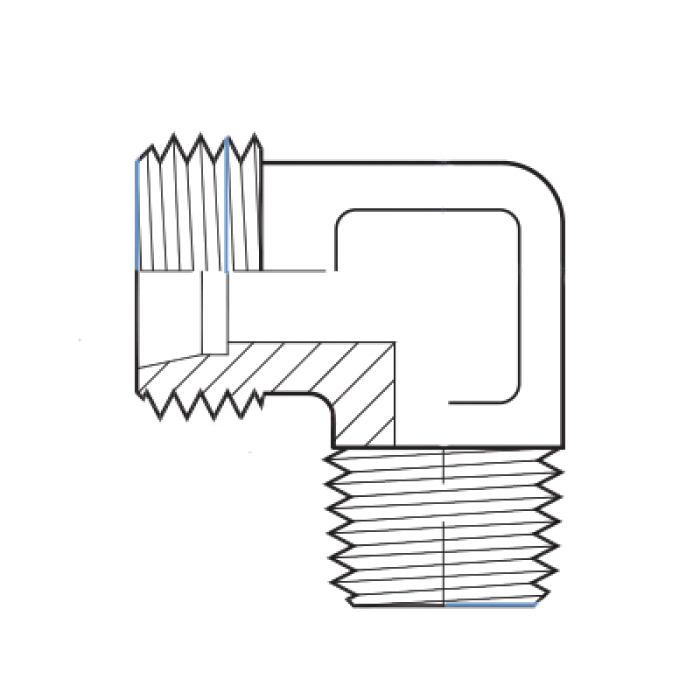

Adaptall 5063S Carbon Steel 90 deg Elbow, S25 Male Metric DIN 24° Tube x 1 in Male BSPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5063S-25-16
  • MPN: 5063S-25-16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5063S Carbon Steel 90 deg Elbow, Connection Size 1: S25, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: BSPT

Series      :      5063S
Connection Size 1      :      S25
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      25 mm Heavy
Shape      :      90° Elbow
Connection 2      :      1 in BSPT
Thread Size 1      :      M36 x 2
Thread Size 2      :      R 1-11
Dimension Standards      :      ISO 8434-1, DIN 2353, ISO 7-1, DIN EN 10226-1
Fitting Type      :      90 deg Elbow
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      BSPT
