Adaptall 5360L-10
Send Print
  1. pin-int

Adaptall 5360L-10

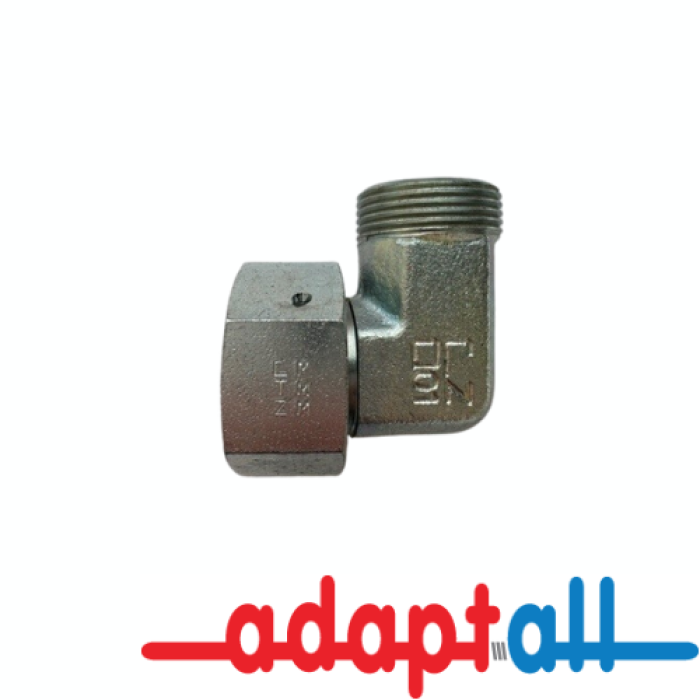

Adaptall 5360L Carbon Steel 90 deg Elbow, L10 Male Metric DIN 24° Tube x L10 Female Metric DIN 24° Tube

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5360L-10
  • MPN: 5360L-10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5360L Carbon Steel 90 deg Elbow, Connection Size 1: L10, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: L10, Gender 2: Female, Connection Type 2: Metric DIN 24° Tube

Series      :      5360L
Connection Size 1      :      L10
Connection Size 2      :      L10
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      10 mm Light
Shape      :      90° Elbow
Connection 2      :      10 mm Light
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      M16 x 1.5
Dimension Standards      :      ISO 8434-1, DIN 2353
Fitting Type      :      90 deg Elbow
Hex Size      :      19 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      Metric DIN 24° Tube
