Adaptall 6069-06-14

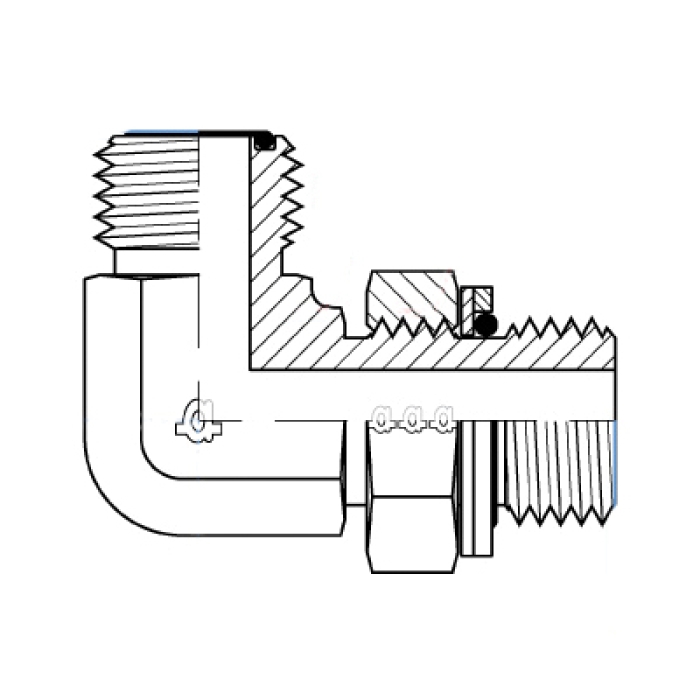

Adaptall 6069 Carbon Steel 90 deg Elbow, 14 mm Male Metric Port x 3/8 in Male O-Ring Face Seal

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 6069-06-14
  • MPN: 6069-06-14
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 6069 Carbon Steel 90 deg Elbow, Connection Size 1: 14 mm, Gender 1: Male, Connection Type 1: Metric Port x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: O-Ring Face Seal

Series      :      6069
Connection Size 1      :      14 mm
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      14 mm
Shape      :      90° Elbow
Connection 2      :      3/8 in ORFS
Thread Size 1      :      M14 x 1.5
Thread Size 2      :      11/16-16
Dimension Standards      :      SAE J1453, ISO 8434-3, ISO 9974, ISO 6149, DIN 7631
Fitting Type      :      90 deg Elbow
Width      :      19 mm
Hex Size      :      19 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric Port
Connection Type 2      :      O-Ring Face Seal
