Adaptall 8060-02-02

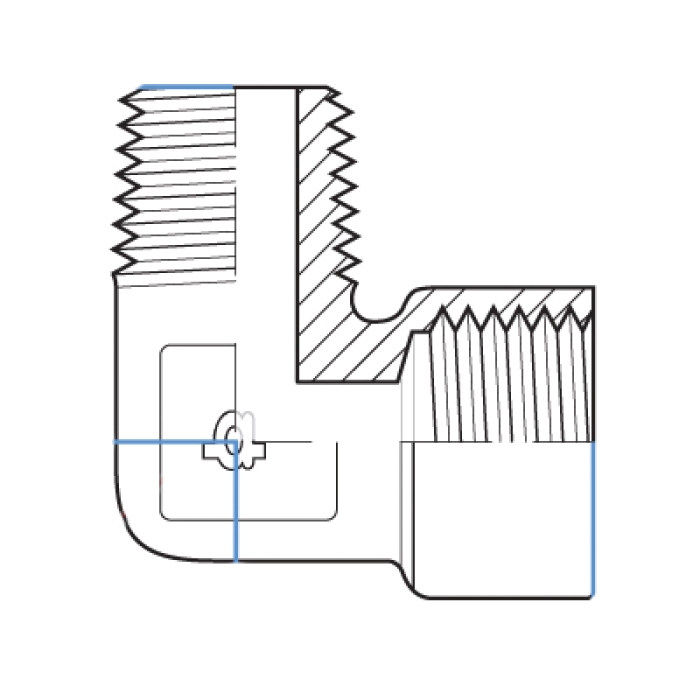

Adaptall 8060 Brass 90 deg Elbow, 1/8 in Male BSPT x 1/8 in Female BSPP

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 8060-02-02
  • MPN: 8060-02-02
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 90 deg Elbow, Series: 8060, Connection Type 1: BSPT, Gender 1: Male, Connection Size 1: 1/8 in, Thread Size 1: R 1/8-28, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 1/8 in, Thread Size 2: G 1/8-28, Brass, Dimension Standards: BS 5200, DIN EN 10226-1, ISO 1179, ISO 7-1, ISO 8434-6

Series      :      8060
Connection Size 1      :      1/8 in
Connection Size 2      :      1/8 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1/8 in BSPT
Shape      :      90 deg Elbow
Connection 2      :      1/8 in BSPP
Thread Size 1      :      R 1/8-28
Thread Size 2      :      G 1/8-28
Dimension Standards      :      BS 5200, DIN EN 10226-1, ISO 1179, ISO 7-1, ISO 8434-6
Fitting Type      :      90 deg Elbow
Material      :      Brass
Connection Type 1      :      BSPT
Connection Type 2      :      BSPP
