Adaptall 9058-08-06
Send Print
  1. pin-int

Adaptall 9058-08-06

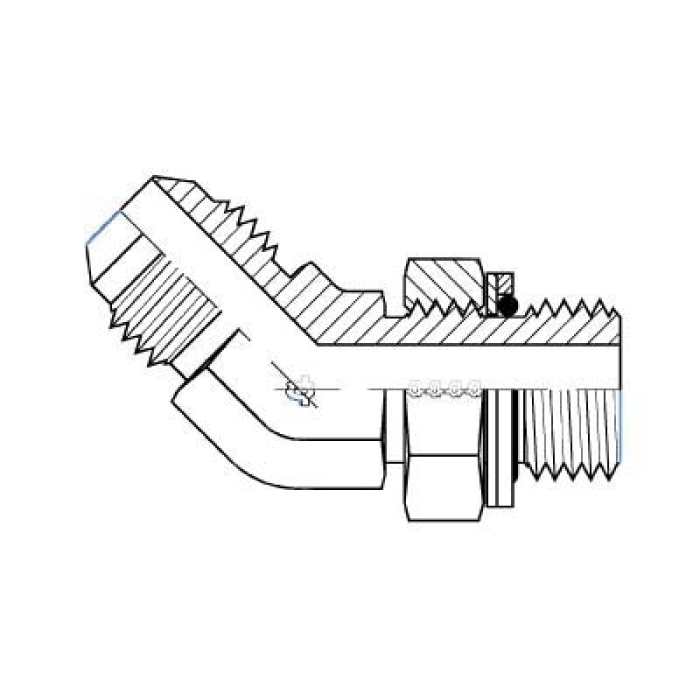

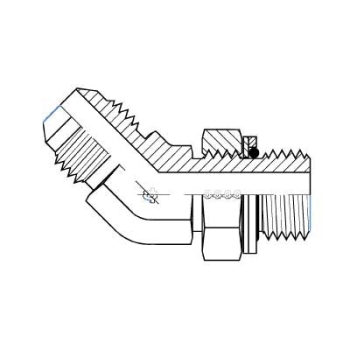

Adaptall 9058 Carbon Steel 45 deg Adjustable Elbow, 1/2 in Male JIC x 3/8 in Male BSPP

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9058-08-06
  • MPN: 9058-08-06
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 45 deg Adjustable Elbow, Series: 9058, Connection Type 1: JIC, Gender 1: Male, Connection Size 1: 1/2 in, Thread Size 1: 3/4-16, Connection Type 2: BSPP, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: G 3/8-19, Carbon Steel, Dimension Standards: BS 5200, ISO 1179 , ISO 8434-2, ISO 8434-6, SAE J514

Series      :      9058
Connection Size 1      :      1/2 in
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/2 in JIC
Shape      :      45 deg Elbow
Connection 2      :      3/8 in BSPP
Thread Size 1      :      3/4-16
Thread Size 2      :      G 3/8-19
Dimension Standards      :      BS 5200, ISO 1179 , ISO 8434-2, ISO 8434-6, SAE J514
Fitting Type      :      45 deg Elbow
Material      :      Carbon Steel
Connection Type 1      :      JIC
Connection Type 2      :      BSPP
