Adaptall 9058-06-06 ADC 9058-06-06 | Tipco Technologies
Adaptall 9058-06-06
Send Print
  1. pin-int

Adaptall 9058-06-06

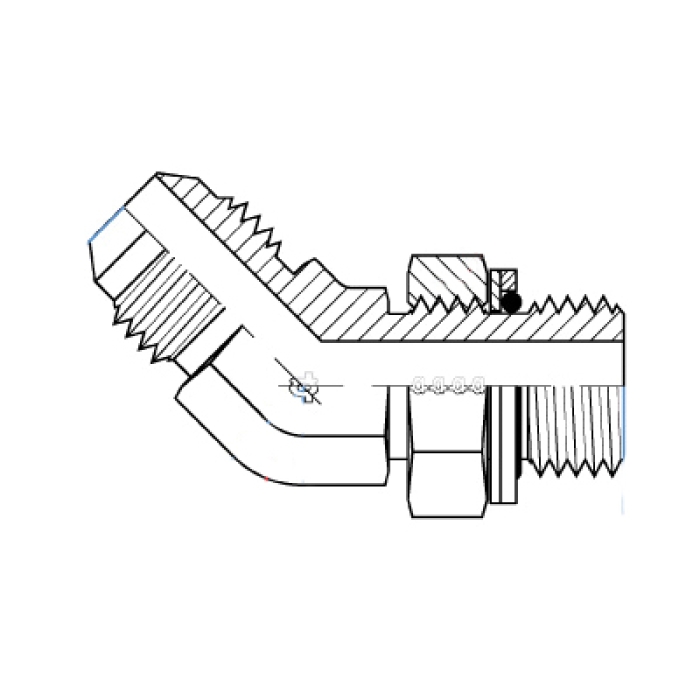

Adaptall 9058 Carbon Steel 45 deg Elbow, 3/8 in Male BSPP x 3/8 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9058-06-06
  • MPN: 9058-06-06
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9058 Carbon Steel 45 deg Elbow, Connection Size 1: 3/8 in, Gender 1: Male, Connection Type 1: BSPP x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9058
Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/8 in BSPP
Shape      :      45° Elbow
Connection 2      :      3/8 in JIC
Thread Size 1      :      G 3/8-19
Thread Size 2      :      9/16-18
Dimension Standards      :      SAE J514, ISO 8434-2, ISO 1179, ISO 8434-6, BS 5200
Fitting Type      :      45 deg Elbow
Width      :      19 mm
Hex Size      :      22 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP
Connection Type 2      :      JIC
