Adaptall 9059-12-08
Send Print
  1. pin-int

Adaptall 9059-12-08

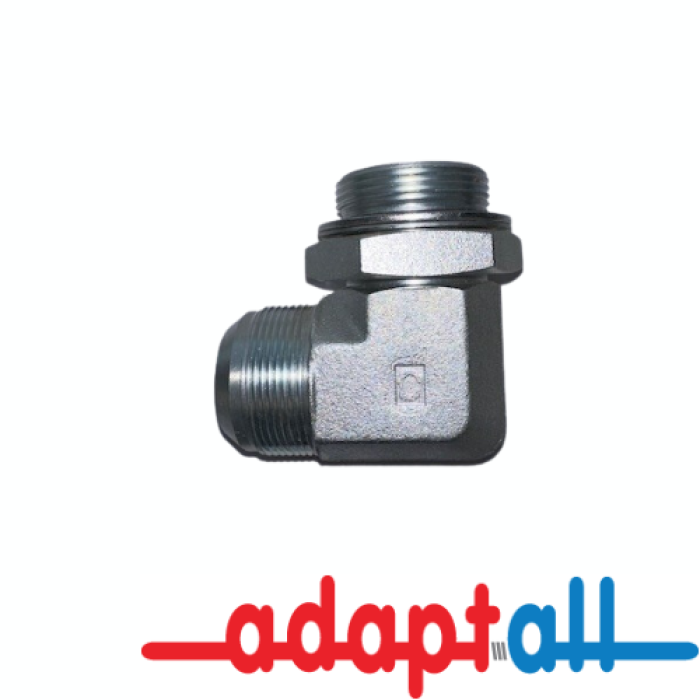

Adaptall 9059 Carbon Steel 90 deg Elbow, 1/2 in Male BSPP x 3/4 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9059-12-08
  • MPN: 9059-12-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9059 Carbon Steel 90 deg Elbow, Connection Size 1: 1/2 in, Gender 1: Male, Connection Type 1: BSPP x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: JIC, 6000 psi

Series      :      9059
Connection Size 1      :      1/2 in
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/2 in BSPP
Shape      :      90° Elbow
Connection 2      :      3/4 in JIC
Thread Size 1      :      G 1/2-14
Thread Size 2      :      1-1/16-12
Dimension Standards      :      SAE J514, ISO 8434-2, ISO 1179, ISO 8434-6, BS 5200
Fitting Type      :      90 deg Elbow
Hex Size      :      26 x 27 mm
Material      :      Carbon Steel
Pressure Rating      :      6000 psi
Connection Type 1      :      BSPP
Connection Type 2      :      JIC
