Adaptall 9062-04-04
Send Print
  1. pin-int

Adaptall 9062-04-04

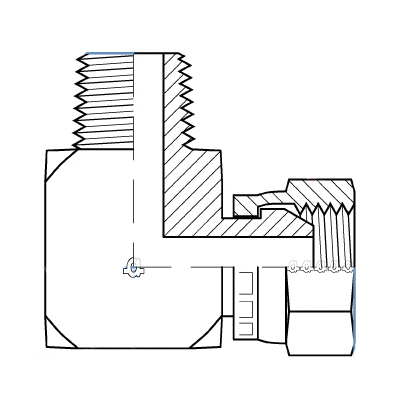

Adaptall 9062 Carbon Steel 90 deg Elbow, 1/4 in Male BSPT x 1/4 in Female BSPP

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9062-04-04
  • MPN: 9062-04-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9062 Carbon Steel 90 deg Elbow, Connection Size 1: 1/4 in, Gender 1: Male, Connection Type 1: BSPT x Connection Size 2: 1/4 in, Gender 2: Female, Connection Type 2: BSPP

Series      :      9062
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1/4 in BSPT
Shape      :      90° Elbow
Connection 2      :      1/4 in BSPP
Thread Size 1      :      R 1/4-19
Thread Size 2      :      G 1/4-19
Dimension Standards      :      BS 5200, DIN EN 10226-1, ISO 1179, ISO 7-1, ISO 8434-6
Fitting Type      :      90 deg Elbow
Hex Size      :      19 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPT
Connection Type 2      :      BSPP
