Adaptall 9199-20-L35-45
Send Print
  1. pin-int

Adaptall 9199-20-L35-45

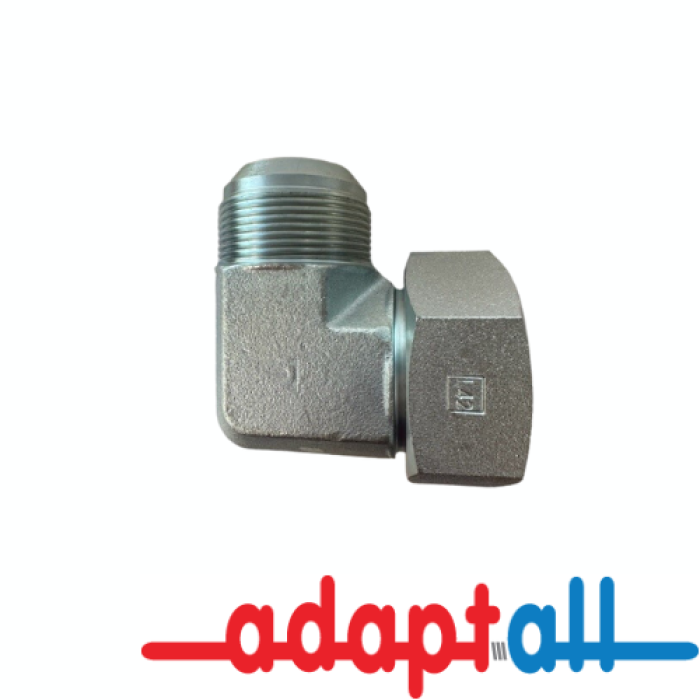

Adaptall 9199 Carbon Steel 90 deg Elbow, L35 Female Metric DIN 24° Tube x 1-1/4 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9199-20-L35-45
  • MPN: 9199-20-L35-45
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 9199 Carbon Steel 90 deg Elbow, Connection Size 1: L35, Gender 1: Female, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1-1/4 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9199
Connection Size 1      :      L35
Connection Size 2      :      1-1/4 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      35 mm Light
Shape      :      90° Elbow
Connection 2      :      1-1/4 in JIC
Thread Size 1      :      M45 x 2
Thread Size 2      :      1-5/8-12
Dimension Standards      :      SAE J514, ISO 8434-2, ISO 8434-1, DIN 2353
Fitting Type      :      90 deg Elbow
Hex Size      :      41 x 50 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      JIC
