Adaptall 9250-10-10

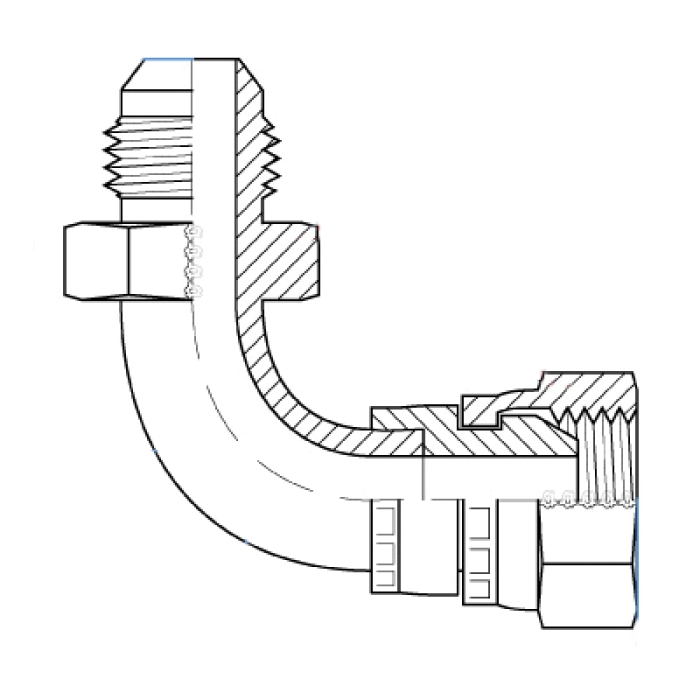

Adaptall 9250 Carbon Steel 90 deg Elbow, 5/8 in Female BSPP x 5/8 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9250-10-10
  • MPN: 9250-10-10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 9250 Carbon Steel 90 deg Elbow, Connection Size 1: 5/8 in, Gender 1: Female, Connection Type 1: BSPP x Connection Size 2: 5/8 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9250
Connection Size 1      :      5/8 in
Connection Size 2      :      5/8 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      5/8 in BSPP
Shape      :      90° Elbow
Connection 2      :      5/8 in JIC
Thread Size 1      :      G 5/8-14
Thread Size 2      :      7/8-14
Dimension Standards      :      SAE J514, ISO 8434-2, ISO 1179, ISO 8434-6, BS 5200
Fitting Type      :      90 deg Elbow
Hex Size      :      25 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP
Connection Type 2      :      JIC
