Aeroquip® by Danfoss 2047-2-4B

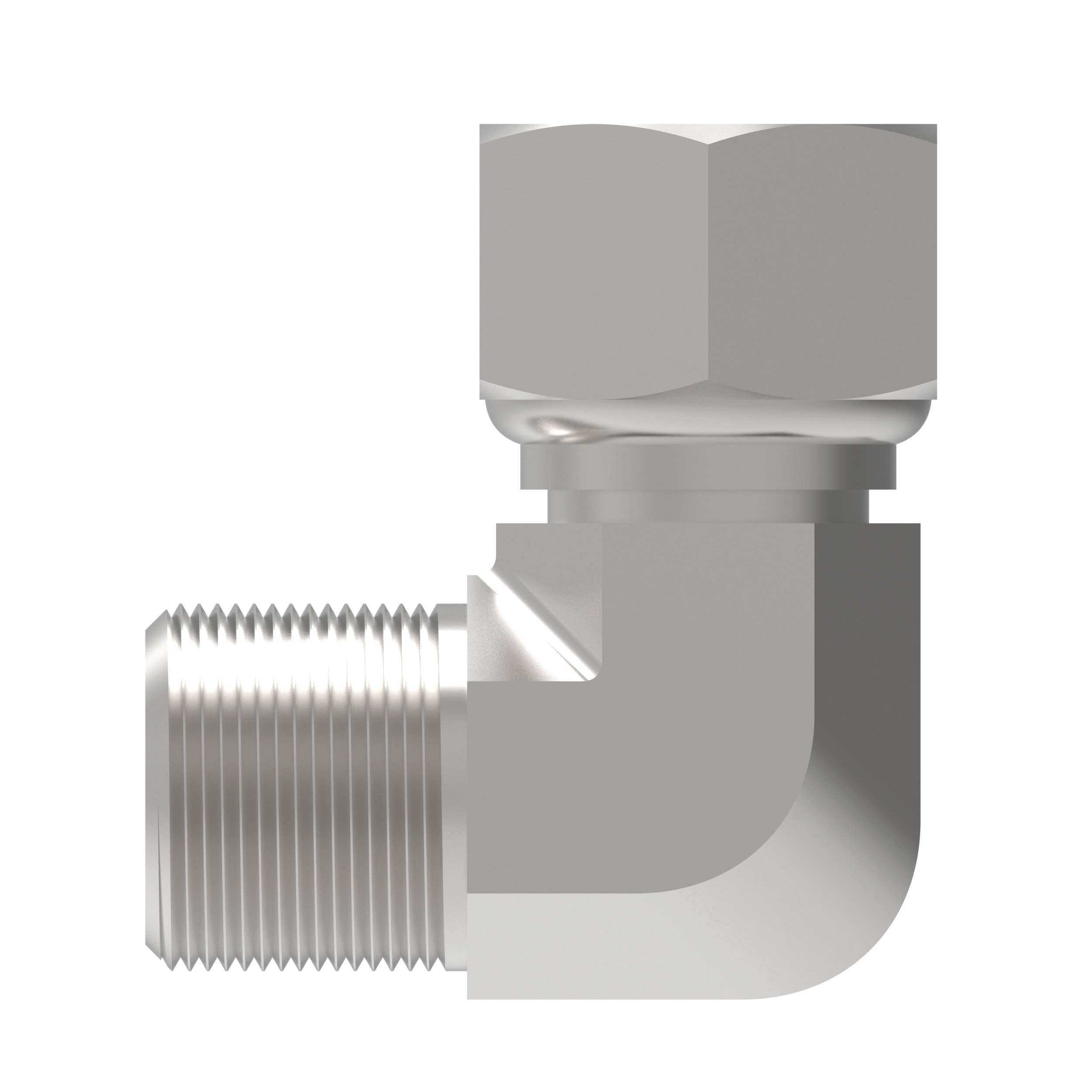

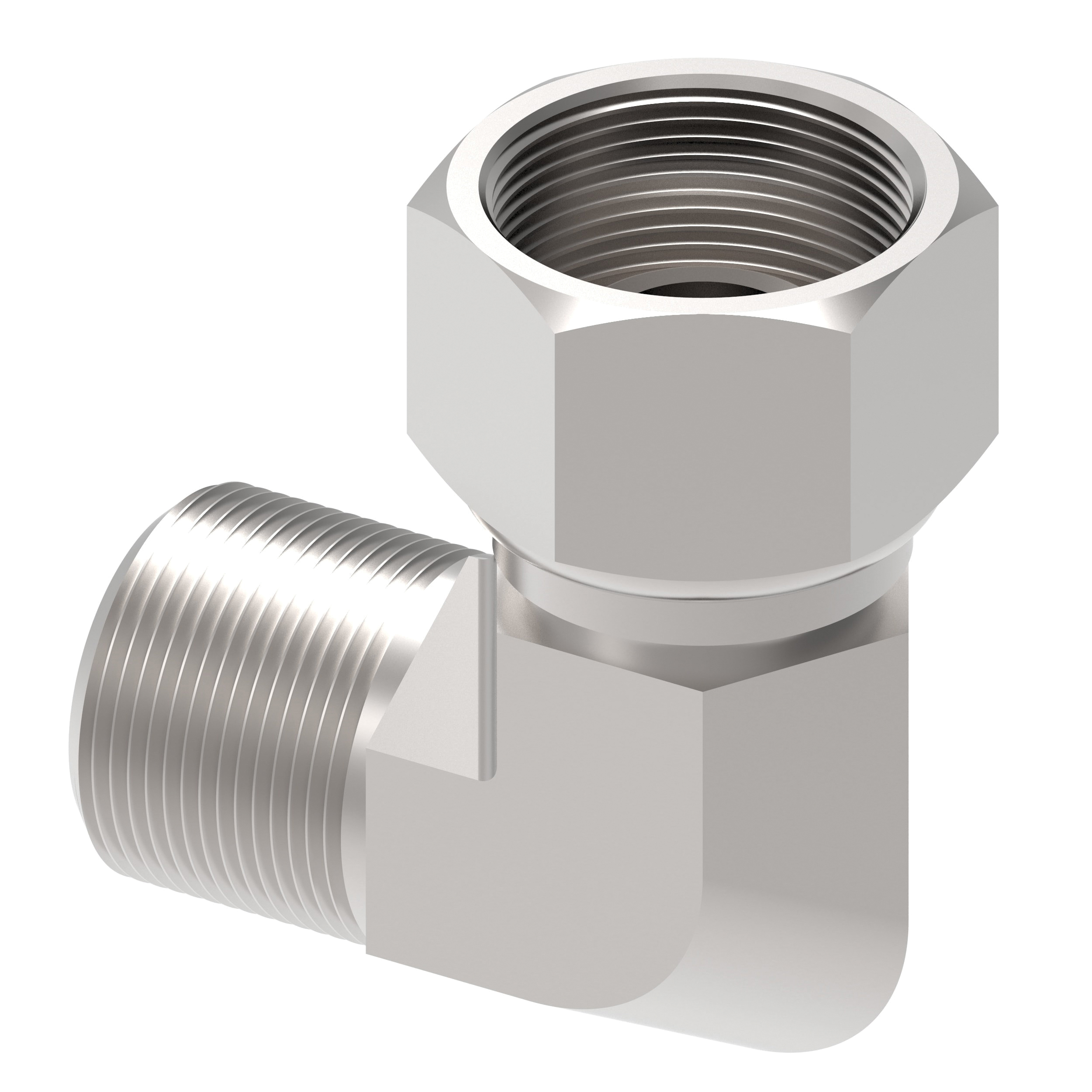

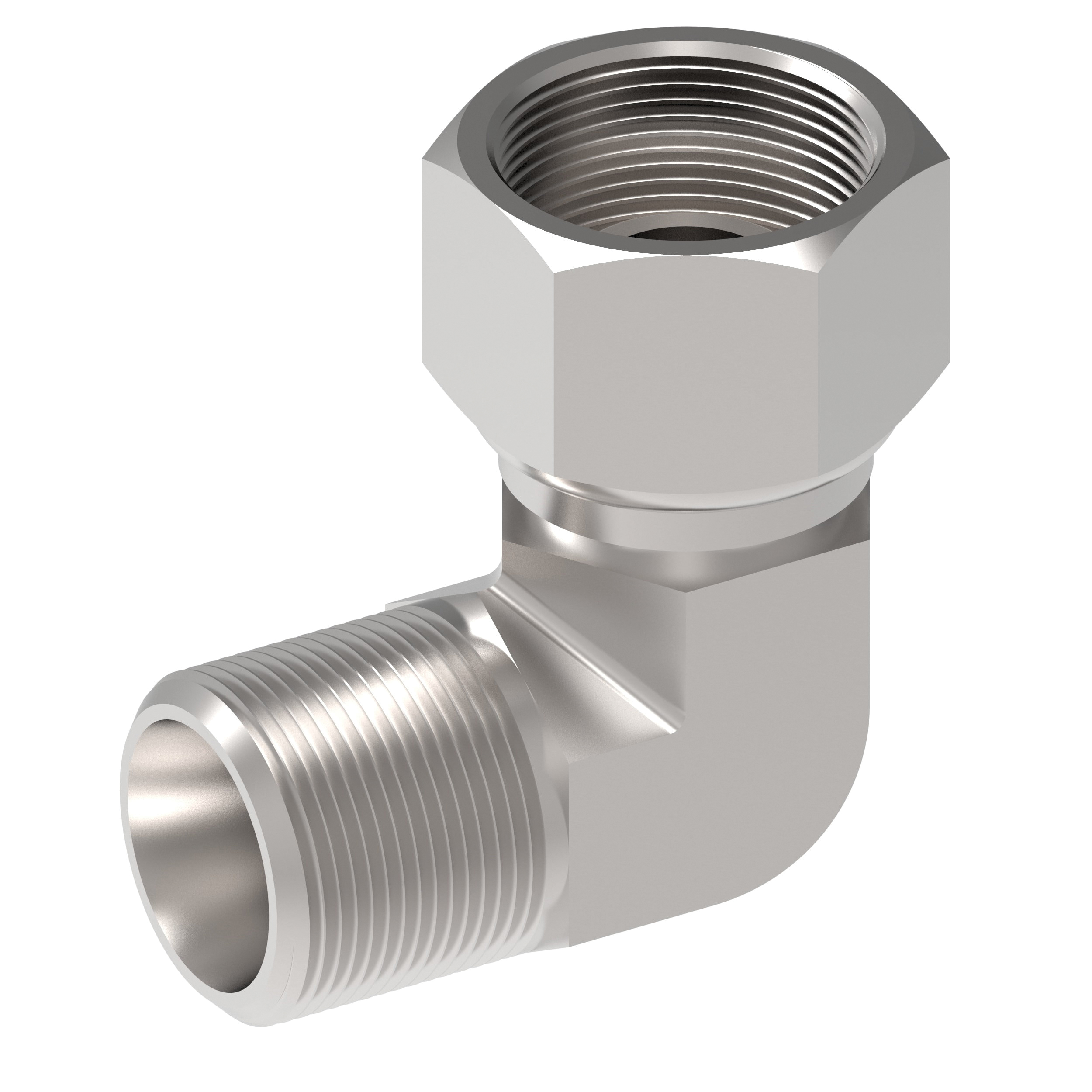

Aeroquip® by Danfoss 2047 Series 2047-2-4B 90 deg Elbow, 1/8 in x 1/4 in, FNPSM Swivel x Male NPTF, Brass, 2200 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip® by Danfoss
  • Tipco Part No: AER 2047-2-4B
  • MPN: 2047-2-4B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® by Danfoss 90 deg Elbow, 2047 Series, Connection Size 1: 1/8 in, Connection Size 2: 1/4 in, Gender 1: Female, Gender 2: Male, Thread Size 1: 1/8-27, Thread Size 2: 1/4-18, Dimension Standards: SAE 140230, 90 deg Elbow Fitting, Brass, 2200 psi, -65 to 400 deg F, Connection Type 1: FNPSM Swivel, Connection Type 2: Male NPTF

Series      :      2047 Series
Connection Size 1      :      1/8 in
Connection Size 2      :      1/4 in
Gender 1      :      Female
Gender 2      :      Male
Thread Size 1      :      1/8-27
Thread Size 2      :      1/4-18
Dimension Standards      :      SAE 140230
Fitting Type      :      90 deg Elbow
Material      :      Brass
Pressure Rating      :      2200 psi
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      FNPSM Swivel
Connection Type 2      :      Male NPTF
