Aeroquip® 2023-16-12S

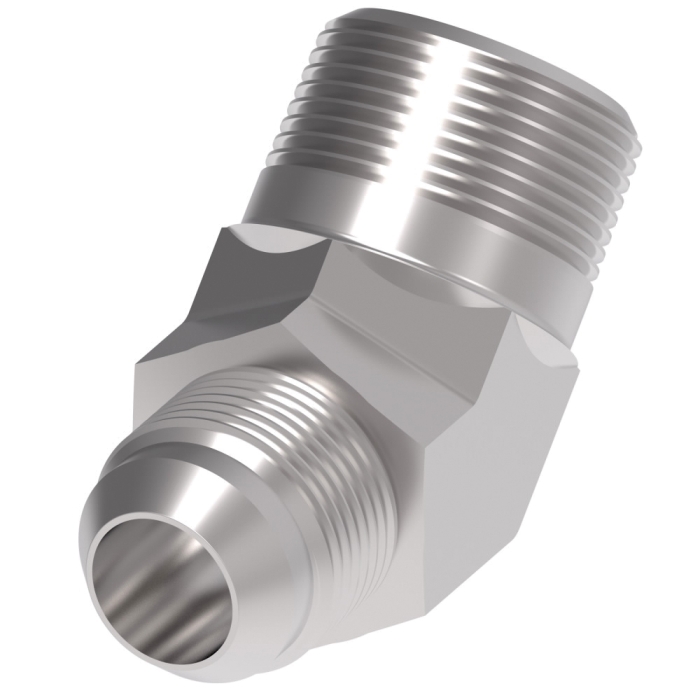

Aeroquip® 2023 Dura-Kote Carbon Steel 45 deg Elbow, 3/4 in Male JIC x 1 in Male NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2023-16-12S
  • MPN: 2023-16-12S
  • Alt. MPN: 2503-12-16-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 2023 Dura-Kote Carbon Steel 45 deg Elbow, Connection Size 1: 3/4 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: NPT, 4500 psi, -65 to 250 deg F

Series      :      2023
Connection Size 1      :      3/4 in
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/4 in JIC
Shape      :      45° Elbow
Connection 2      :      1 in NPT
Thread Size 1      :      1-1/16-12
Thread Size 2      :      1-11-1/2
Finish      :      Dura-Kote
Dimension Standards      :      SAE 070302, MS 51508
Fitting Type      :      45 deg Elbow
Hex Size      :      1.312 in
Material      :      Carbon Steel
Pressure Rating      :      4500 psi
Temperature Rating      :      -65 to 250 deg F
Connection Type 1      :      JIC
Connection Type 2      :      NPT
