Aeroquip® 2024-6-10S

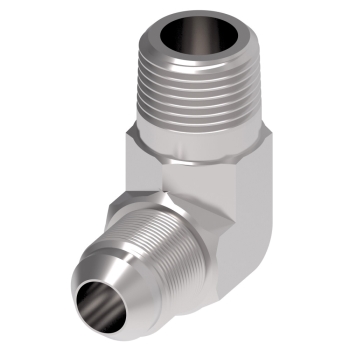

Aeroquip® 2024 Dura-Kote Carbon Steel 90 deg Elbow, 5/8 in Male JIC x 3/8 in Male NPT
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER 2024-6-10S
- MPN: 2024-6-10S
- Alt. MPN: 2501-10-06-FG
- UPC: 678146047618
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® 2024 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 5/8 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: NPT, -65 to 250 deg F
| Series | : | 2024 |
| Connection Size 1 | : | 5/8 in |
| Connection Size 2 | : | 3/8 in |
| Gender 1 | : | Male |
| Gender 2 | : | Male |
| Connection 1 | : | 5/8 in JIC |
| Shape | : | 90° Elbow |
| Connection 2 | : | 3/8 in NPT |
| Thread Size 1 | : | 7/8-14 |
| Thread Size 2 | : | 3/8-18 |
| Finish | : | Dura-Kote |
| Dimension Standards | : | SAE 070202 |
| Length | : | 1.715 in |
| Fitting Type | : | 90 deg Elbow |
| Width | : | 0.87 in |
| Height | : | 1.885 in |
| Hex Size | : | 0.87 in |
| Material | : | Carbon Steel |
| Temperature Rating | : | -65 to 250 deg F |
| Connection Type 1 | : | JIC |
| Connection Type 2 | : | NPT |
Danfoss has provided a comprehensive product line focus to be the #1 choice of Danfoss channel partners and OE manufacturers for a select group of carbon steel adapters.
- Improved and consistent corrosion resistance featuring Dura-Kote™
Applications: Hydraulic circuits and general fluid conveyance in machine building, mining, metals and minerals, mobile machinery and equipment, oil and gas, rail, renewables, vehicles
