Aeroquip® 2025-20-20S
Send Print
  1. pin-int

Aeroquip® 2025-20-20S

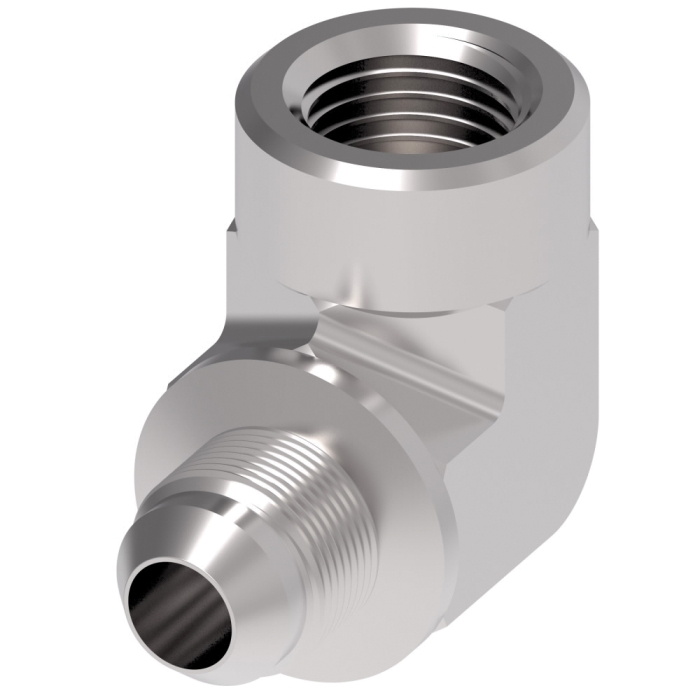

Aeroquip® 2025 Dura-Kote Carbon Steel 90 deg Elbow, 1-1/4 in Male JIC x 1-1/4 in Female NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2025-20-20S
  • MPN: 2025-20-20S
  • Alt. MPN: 2502-20-20-FG
  • UPC: 639789285713
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 2025 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 1-1/4 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1-1/4 in, Gender 2: Female, Connection Type 2: NPT, -65 to 400 deg F

Series      :      2025
Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1-1/4 in JIC
Shape      :      90° Elbow
Connection 2      :      1-1/4 in NPT
Thread Size 1      :      1-5/8-12
Thread Size 2      :      1-1/4-11-1/2
Finish      :      Dura-Kote
Dimension Standards      :      SAE 070203
Length      :      2.685 in
Fitting Type      :      90 deg Elbow
Width      :      1.97 in
Height      :      3.315 in
Hex Size      :      1.97 in
Material      :      Carbon Steel
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      JIC
Connection Type 2      :      NPT

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
