Aeroquip® 2048-4-4S
Send Print
  1. pin-int

Aeroquip® 2048-4-4S

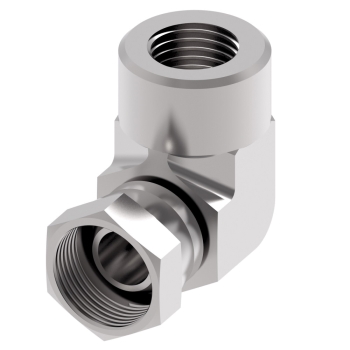

Aeroquip® 2048 Dura-Kote Carbon Steel 90 deg Elbow, 1/4 in Female NPSM x 1/4 in Female NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2048-4-4S
  • MPN: 2048-4-4S
  • Alt. MPN: 1502-04-04-FG
  • UPC: 678146050236
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 2048 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 1/4 in, Gender 1: Female, Connection Type 1: NPSM x Connection Size 2: 1/4 in, Gender 2: Female, Connection Type 2: NPT, -65 to 400 deg F

Series      :      2048
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Gender 1      :      Female
Gender 2      :      Female
Connection 1      :      1/4 in NPSM
Shape      :      90° Elbow
Connection 2      :      1/4 in NPT
Thread Size 1      :      1/4-18
Thread Size 2      :      1/4-18
Finish      :      Dura-Kote
Dimension Standards      :      SAE 140231
Length      :      1.535 in
Fitting Type      :      90 deg Elbow
Width      :      0.75 in
Height      :      1.345 in
Hex Size      :      0.75 x 0.69 in
Material      :      Carbon Steel
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      NPSM
Connection Type 2      :      NPT

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
