Aeroquip® 206209-4-4S

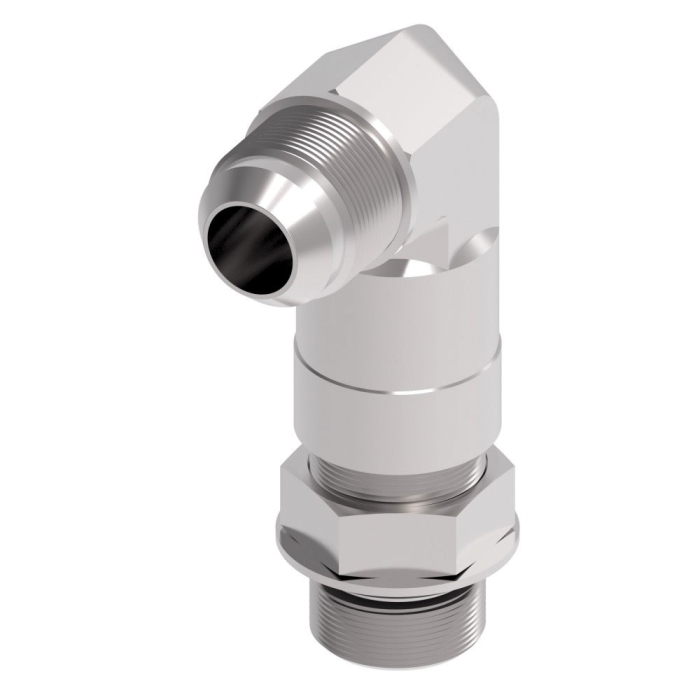

Aeroquip® 206209 Dura-Kote Carbon Steel 90 deg Elbow, 1/4 in Male O-Ring Boss x 1/4 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 206209-4-4S
  • MPN: 206209-4-4S
  • UPC: 639789286284
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 206209 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 1/4 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC, -40 to 250 deg F

Series      :      206209
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/4 in ORB
Shape      :      90° Elbow
Connection 2      :      1/4 in JIC
Thread Size 1      :      7/16-20
Thread Size 2      :      7/16-20
Finish      :      Dura-Kote
Dimension Standards      :      SAE 070320
Length      :      1.96 in
Fitting Type      :      90 deg Elbow
Width      :      0.56 in
Height      :      1.17 in
Hex Size      :      0.47 x 0.56 in
Material      :      Carbon Steel
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      JIC

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
