Aeroquip® 2071-20-20S

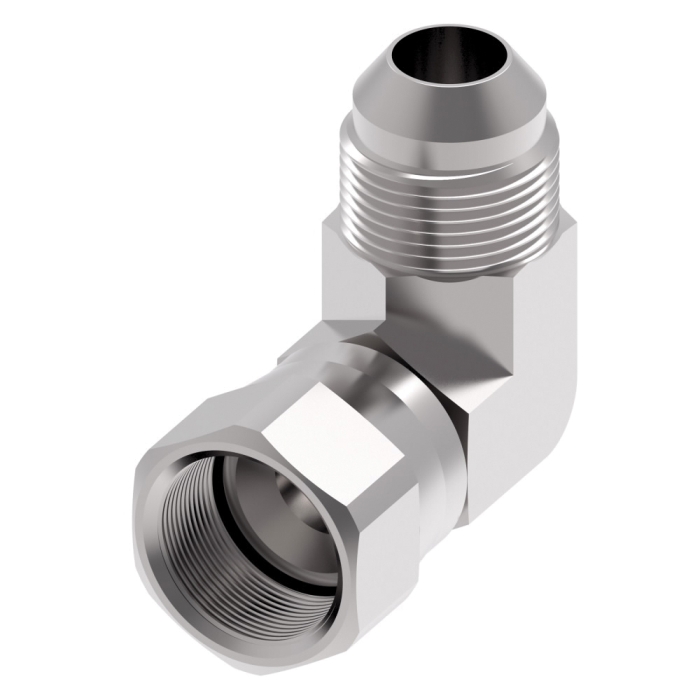

Aeroquip® 2071 Dura-Kote Carbon Steel 90 deg Elbow, 1-1/4 in Female JIC x 1-1/4 in Male JIC
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER 2071-20-20S
- MPN: 2071-20-20S
- Alt. MPN: 6500-20-20-FG
- UPC: 678146051554
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® 2071 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 1-1/4 in, Gender 1: Female, Connection Type 1: JIC x Connection Size 2: 1-1/4 in, Gender 2: Male, Connection Type 2: JIC, -65 to 400 deg F
| Series | : | 2071 |
| Connection Size 1 | : | 1-1/4 in |
| Connection Size 2 | : | 1-1/4 in |
| Gender 1 | : | Female |
| Gender 2 | : | Male |
| Connection 1 | : | 1-1/4 in JIC |
| Shape | : | 90° Elbow |
| Connection 2 | : | 1-1/4 in JIC |
| Thread Size 1 | : | 1-5/8-12 |
| Thread Size 2 | : | 1-5/8-12 |
| Finish | : | Dura-Kote |
| Dimension Standards | : | SAE 070221 |
| Length | : | 2.06 in |
| Fitting Type | : | 90 deg Elbow |
| Width | : | 2 in |
| Height | : | 2.32 in |
| Hex Size | : | 1.61 x 2 in |
| Material | : | Carbon Steel |
| Temperature Rating | : | -65 to 400 deg F |
| Connection Type 1 | : | JIC |
| Connection Type 2 | : | JIC |
Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
Aeroquip_210212-16S_CAT.pdf
CAD File Link
