Aeroquip® 2087-12-12S
Send Print
  1. pin-int

Aeroquip® 2087-12-12S

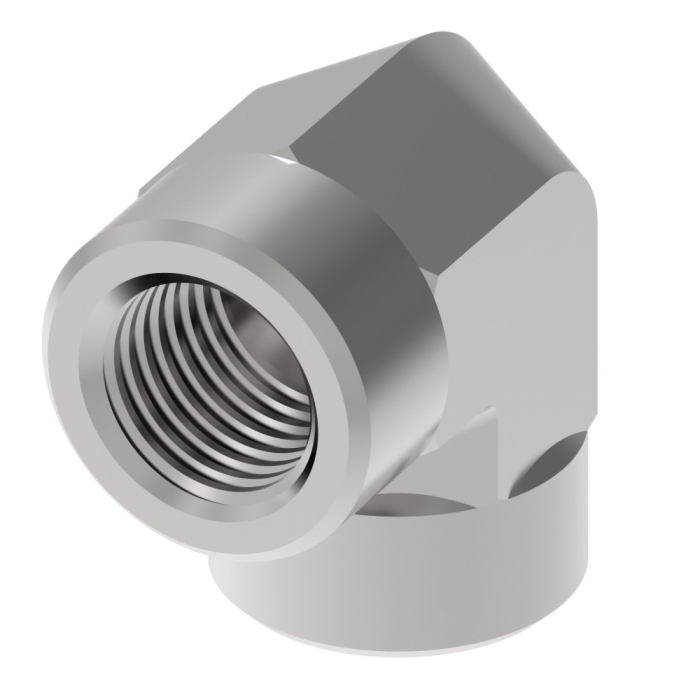

Aeroquip® 2087 Dura-Kote Carbon Steel 90 deg Elbow, 3/4 in Female NPT x 3/4 in Female NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2087-12-12S
  • MPN: 2087-12-12S
  • Alt. MPN: 5504-12-12-FG
  • UPC: 678146052193
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 2087 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 3/4 in, Gender 1: Female, Connection Type 1: NPT x Connection Size 2: 3/4 in, Gender 2: Female, Connection Type 2: NPT, 3500 psi, -65 to 400 deg F

Series      :      2087
Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Gender 1      :      Female
Gender 2      :      Female
Connection 1      :      3/4 in NPT
Shape      :      90° Elbow
Connection 2      :      3/4 in NPT
Thread Size 1      :      3/4-14
Thread Size 2      :      3/4-14
Finish      :      Dura-Kote
Dimension Standards      :      SAE 140238
Length      :      2.04 in
Fitting Type      :      90 deg Elbow
Width      :      1.26 in
Height      :      1.99 in
Hex Size      :      1.26 in
Material      :      Carbon Steel
Pressure Rating      :      3500 psi
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      NPT
Connection Type 2      :      NPT

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
