Aeroquip® 500023-12-8S
Send Print
  1. pin-int

Aeroquip® 500023-12-8S

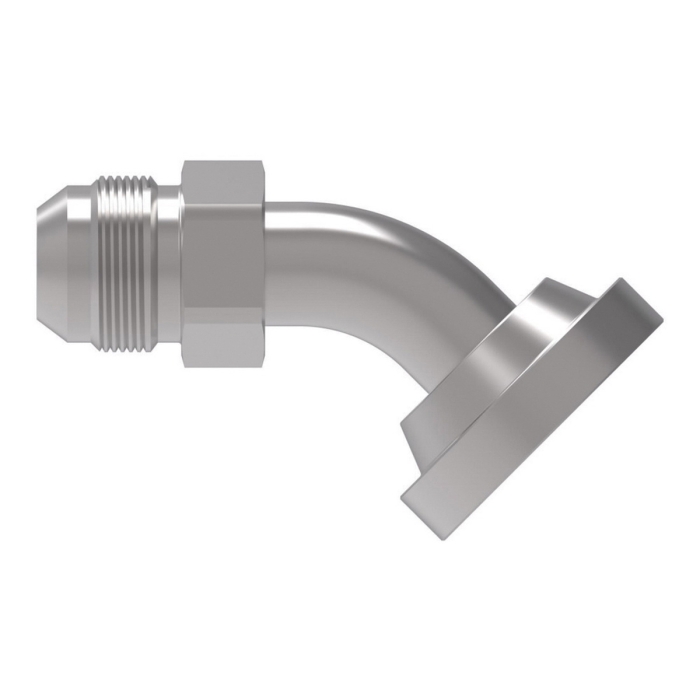

Aeroquip® 500023 Dura-Kote Carbon Steel 45 deg Elbow, 3/4 in SAE Code 61 Flange x 1/2 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 500023-12-8S
  • MPN: 500023-12-8S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 500023 Dura-Kote Carbon Steel 45 deg Elbow, Connection Size 1: 3/4 in, Gender 1: , Connection Type 1: SAE Code 61 Flange x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: JIC, -65 to 400 deg F

Series      :      500023
Connection Size 1      :      3/4 in
Connection Size 2      :      1/2 in
Gender 2      :      Male
Connection 1      :      3/4 in Code 61
Shape      :      45° Elbow
Connection 2      :      1/2 in JIC
Thread Size 2      :      3/4-16
Finish      :      Dura-Kote
Dimension Standards      :      SAE J514
Fitting Type      :      45 deg Elbow
Material      :      Carbon Steel
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      SAE Code 61 Flange
Connection Type 2      :      JIC

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
