Aeroquip® 504089-32S
Send Print
  1. pin-int

Aeroquip® 504089-32S

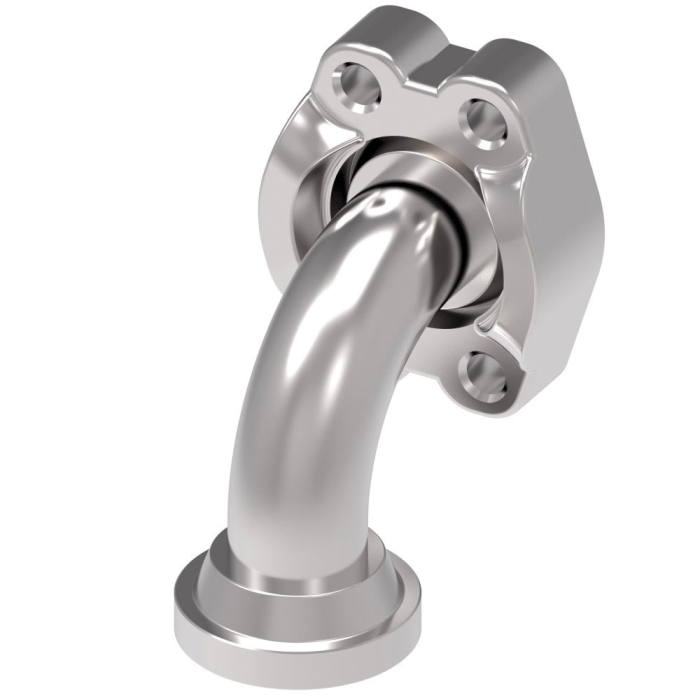

Aeroquip® 504089 Dura-Kote Carbon Steel 90 deg Elbow, 2 in SAE Code 61 Flange x 2 in SAE Code 61 Flange

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 504089-32S
  • MPN: 504089-32S
  • UPC: 678146057037
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 504089 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 2 in, Gender 1: , Connection Type 1: SAE Code 61 Flange x Connection Size 2: 2 in, Gender 2: , Connection Type 2: SAE Code 61 Flange, 3000 psi, -65 to 400 deg F

Series      :      504089
Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection 1      :      2 in Code 61
Shape      :      90° Elbow
Connection 2      :      2 in Code 61
Finish      :      Dura-Kote
Dimension Standards      :      SAE J514
Length      :      4.525 in
Fitting Type      :      90 deg Elbow
Width      :      4 in
Height      :      5.25 in
Hex Size      :      2.81 in
Material      :      Carbon Steel
Pressure Rating      :      3000 psi
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      SAE Code 61 Flange
Connection Type 2      :      SAE Code 61 Flange

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
