Aeroquip® FF1167-1212S
Send Print
  1. pin-int

Aeroquip® FF1167-1212S

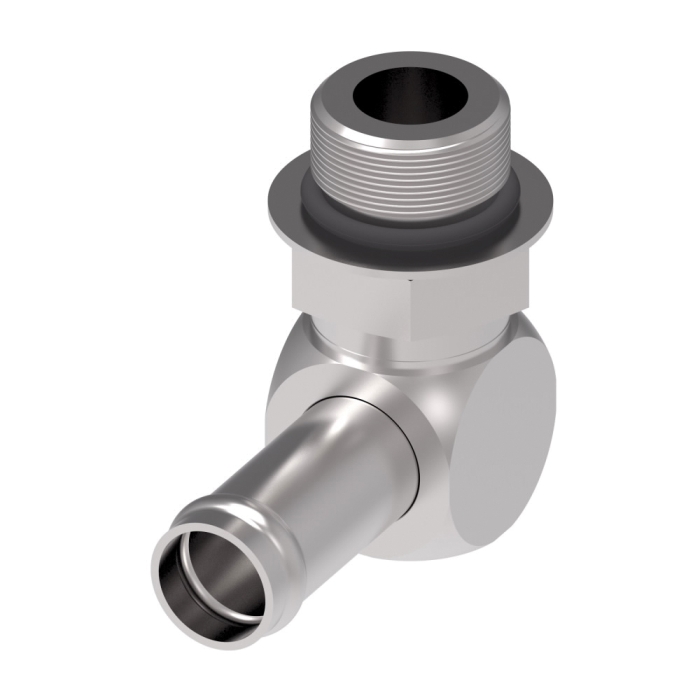

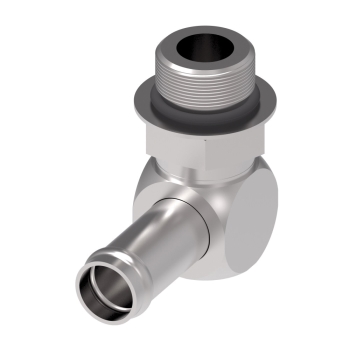

Aeroquip® FF1167 Dura-Kote Carbon Steel 90 deg Elbow, 3/4 in Hose x 3/4 in Male SAE ORB

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF1167-1212S
  • MPN: FF1167-1212S
  • UPC: 678146061300
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 90 deg Elbow, Series: FF1167, Connection Type 1: Hose, Connection Size 1: 3/4 in, Connection Type 2: SAE ORB, Gender 2: Male, Connection Size 2: 3/4 in, Thread Size 2: 1-1/16-12, Hex Size: 1.25 x 1.06 in, Carbon Steel, Finish: Dura-Kote, 2.49 in Length, 1-1/4 in Width, 2.59 in Height, -65 to 400 deg F

Series      :      FF1167
Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Gender 2      :      Male
Connection 1      :      3/4 in Hose
Shape      :      90 deg Elbow
Connection 2      :      3/4 in ORB
Thread Size 2      :      1-1/16-12
Finish      :      Dura-Kote
Length      :      2.49 in
Fitting Type      :      90 deg Elbow
Width      :      1-1/4 in
Height      :      2.59 in
Hex Size      :      1.25 x 1.06 in
Material      :      Carbon Steel
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      Hose
Connection Type 2      :      SAE ORB

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
