Aeroquip® FF2035T2020S

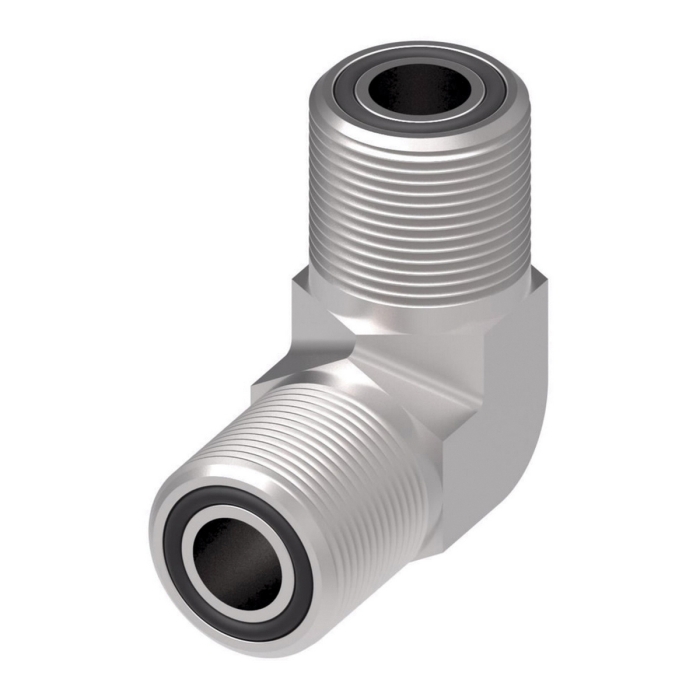

Aeroquip® FF2035T Dura-Kote Carbon Steel 90 deg Elbow, 1-1/4 in Male O-Ring Face Seal x 1-1/4 in Male O-Ring Face Seal

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF2035T2020S
  • MPN: FF2035T2020S
  • Alt. MPN: FS2500-20-20-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® FF2035T Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 1-1/4 in, Gender 1: Male, Connection Type 1: O-Ring Face Seal x Connection Size 2: 1-1/4 in, Gender 2: Male, Connection Type 2: O-Ring Face Seal, 3600 psi, -65 to 400 deg F

Series      :      FF2035T
Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1-1/4 in ORFS
Shape      :      90° Elbow
Connection 2      :      1-1/4 in ORFS
Thread Size 1      :      1-11/16-12
Thread Size 2      :      1-11/16-12
Finish      :      Dura-Kote
Dimension Standards      :      SAE 520201
Fitting Type      :      90 deg Elbow
Material      :      Carbon Steel
Pressure Rating      :      3600 psi
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      O-Ring Face Seal

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
