Aeroquip® FF3046-0606S

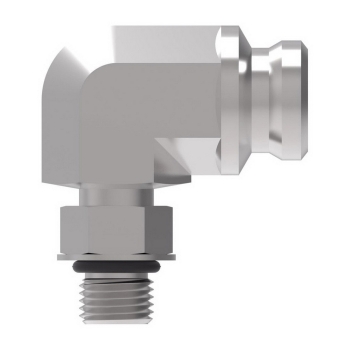

Aeroquip® FF3046 Dura-Kote Carbon Steel 90 deg Elbow, 3/8 in Male O-Ring Boss x 3/8 in Female STC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF3046-0606S
  • MPN: FF3046-0606S
  • UPC: 678146038463
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® FF3046 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 3/8 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 3/8 in, Gender 2: Female, Connection Type 2: STC, 500 psi, -40 to 250 deg F

Series      :      FF3046
Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      3/8 in ORB
Shape      :      90° Elbow
Connection 2      :      3/8 in STC
Thread Size 1      :      9/16-18
Finish      :      Dura-Kote
Length      :      1.485 in
Fitting Type      :      90 deg Elbow
Width      :      0.75 in
Height      :      1.775 in
Hex Size      :      0.75 x 0.687 in
Material      :      Carbon Steel
Pressure Rating      :      500 psi
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      STC
