Aeroquip® FF3067-1808S AER FF3067-1808S | Tipco Technologies
Aeroquip® FF3067-1808S
Send Print
  1. pin-int

Aeroquip® FF3067-1808S

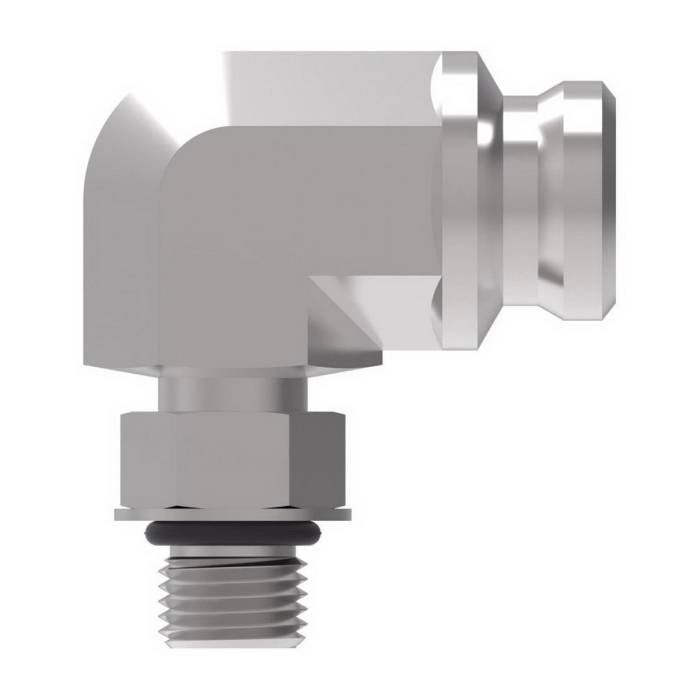

Aeroquip® FF3067 Dura-Kote Carbon Steel 90 deg Elbow, 18 mm Male Metric Port x 1/2 in Female STC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF3067-1808S
  • MPN: FF3067-1808S
  • UPC: 678146038678
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® FF3067 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 18 mm, Gender 1: Male, Connection Type 1: Metric Port x Connection Size 2: 1/2 in, Gender 2: Female, Connection Type 2: STC, -40 to 250 deg F

Series      :      FF3067
Connection Size 1      :      18 mm
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      18 mm
Shape      :      90° Elbow
Connection 2      :      1/2 in STC
Thread Size 1      :      M18 x 1.5
Finish      :      Dura-Kote
Length      :      1.563 in
Fitting Type      :      90 deg Elbow
Width      :      0.944 in
Height      :      2.173 in
Hex Size      :      0.87 in
Material      :      Carbon Steel
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      Metric Port
Connection Type 2      :      STC
