Aeroquip® FF5162-1212S
Send Print
  1. pin-int

Aeroquip® FF5162-1212S

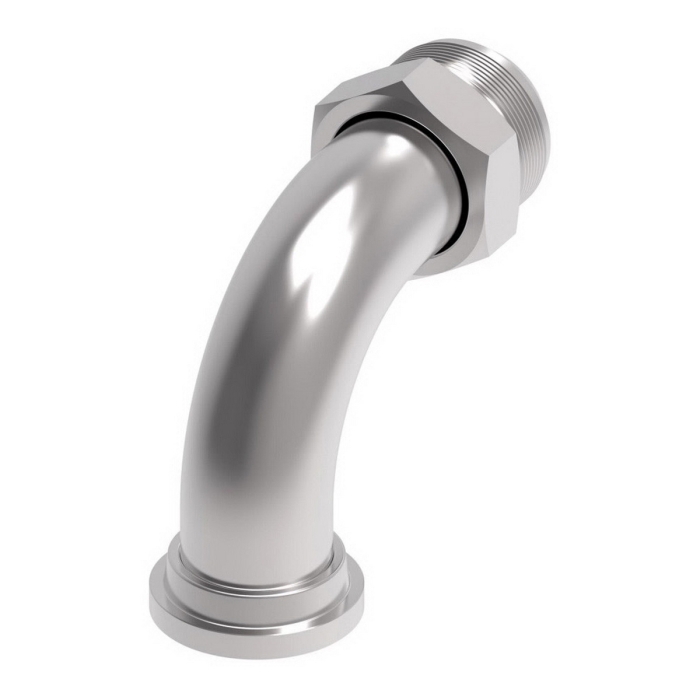

Aeroquip® FF5162 Dura-Kote Carbon Steel 90 deg Elbow, 3/4 in SAE Code 61 Flange x 3/4 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF5162-1212S
  • MPN: FF5162-1212S
  • UPC: 678146065315
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® FF5162 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 3/4 in, Gender 1: , Connection Type 1: SAE Code 61 Flange x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: JIC, -65 to 400 deg F

Series      :      FF5162
Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Gender 2      :      Male
Connection 1      :      3/4 in Code 61
Shape      :      90° Elbow
Connection 2      :      3/4 in JIC
Thread Size 2      :      1-1/16-12
Finish      :      Dura-Kote
Dimension Standards      :      SAE J514
Length      :      3.56 in
Fitting Type      :      90 deg Elbow
Height      :      2.69 in
Hex Size      :      1.12 in
Material      :      Carbon Steel
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      SAE Code 61 Flange
Connection Type 2      :      JIC

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
