Aeroquip® FF5163-0808S

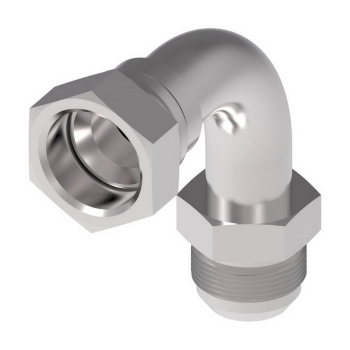

Aeroquip® FF5163 Dura-Kote Carbon Steel 90 deg Elbow, 1/2 in Female JIC x 1/2 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF5163-0808S
  • MPN: FF5163-0808S
  • UPC: 639789287960
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® FF5163 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 1/2 in, Gender 1: Female, Connection Type 1: JIC x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: JIC, 4000 psi, -65 to 400 deg F

Series      :      FF5163
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      1/2 in JIC
Shape      :      90° Elbow
Connection 2      :      1/2 in JIC
Thread Size 1      :      3/4-16
Thread Size 2      :      3/4-16
Finish      :      Dura-Kote
Dimension Standards      :      SAE J514
Length      :      2.6 in
Fitting Type      :      90 deg Elbow
Width      :      0.88 in
Height      :      2.715 in
Hex Size      :      0.81 x 0.88 in
Material      :      Carbon Steel
Pressure Rating      :      4000 psi
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      JIC
Connection Type 2      :      JIC
