Aeroquip® FF5540-2424S
Send Print
  1. pin-int

Aeroquip® FF5540-2424S

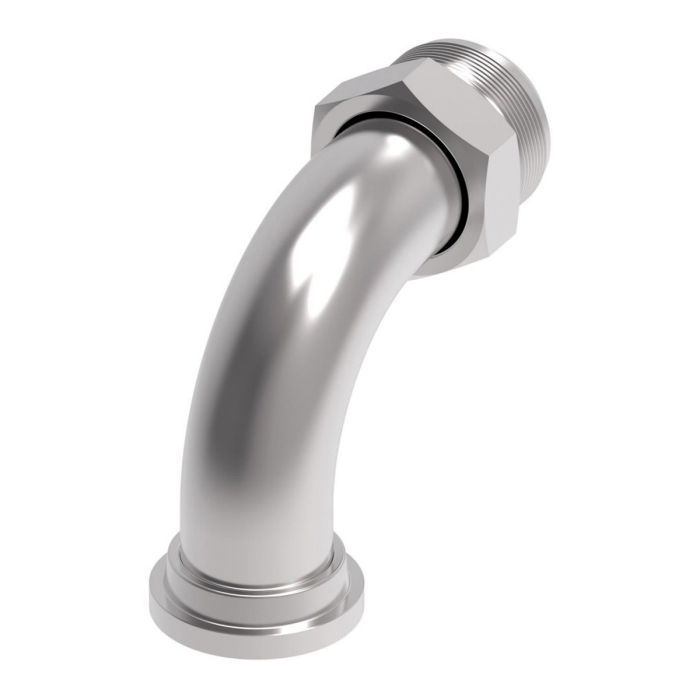

Aeroquip® FF5540 Dura-Kote Carbon Steel 90 deg Elbow, 1-1/2 in SAE Code 62 Flange x 1-1/2 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF5540-2424S
  • MPN: FF5540-2424S
  • UPC: 678146065568
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® FF5540 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 1-1/2 in, Gender 1: , Connection Type 1: SAE Code 62 Flange x Connection Size 2: 1-1/2 in, Gender 2: Male, Connection Type 2: JIC, 2100 psi, -65 to 400 deg F

Series      :      FF5540
Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Gender 2      :      Male
Connection 1      :      1-1/2 in Code 62
Shape      :      90° Elbow
Connection 2      :      1-1/2 in JIC
Thread Size 2      :      1-7/8-12
Finish      :      Dura-Kote
Dimension Standards      :      SAE J514
Length      :      6.583 in
Fitting Type      :      90 deg Elbow
Width      :      2 in
Height      :      5.125 in
Hex Size      :      2-1/2 x 2 in
Material      :      Carbon Steel
Pressure Rating      :      2100 psi
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      SAE Code 62 Flange
Connection Type 2      :      JIC

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
