Aeroquip® FF5945T1616S
Send Print
  1. pin-int

Aeroquip® FF5945T1616S

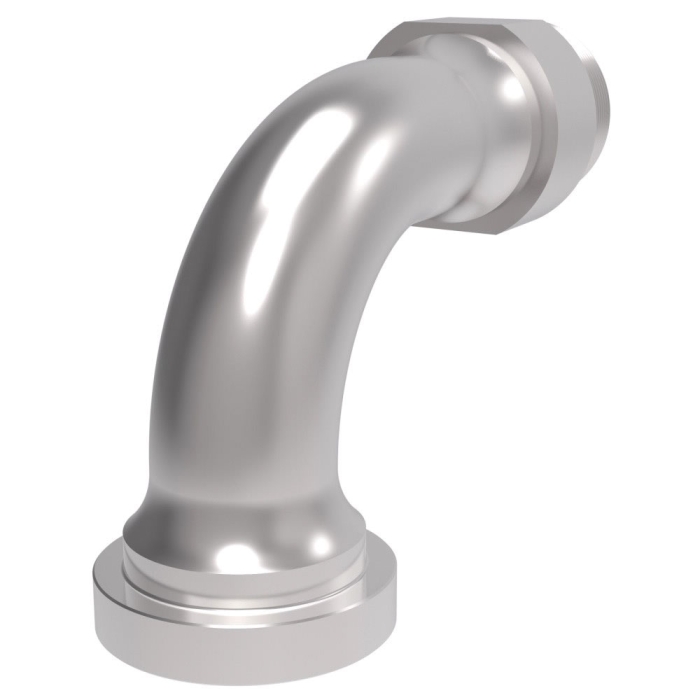

Aeroquip® FF5945T Dura-Kote Carbon Steel 90 deg Elbow, 1 in SAE Code 62 Flange x 1 in Male O-Ring Face Seal

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF5945T1616S
  • MPN: FF5945T1616S
  • UPC: 678146184337
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® FF5945T Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 1 in, Gender 1: , Connection Type 1: SAE Code 62 Flange x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: O-Ring Face Seal, 6000 psi, -40 to 250 deg F

Series      :      FF5945T
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Gender 2      :      Male
Connection 1      :      1 in Code 62
Shape      :      90° Elbow
Connection 2      :      1 in ORFS
Thread Size 2      :      1-7/16-12
Finish      :      Dura-Kote
Length      :      4.16 in
Fitting Type      :      90 deg Elbow
Width      :      1.88 in
Height      :      3.12 in
Hex Size      :      1-1/2 in
Material      :      Carbon Steel
Pressure Rating      :      6000 psi
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      SAE Code 62 Flange
Connection Type 2      :      O-Ring Face Seal

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
