Aeroquip® GG306-NP04-02
Send Print
  1. pin-int

Aeroquip® GG306-NP04-02

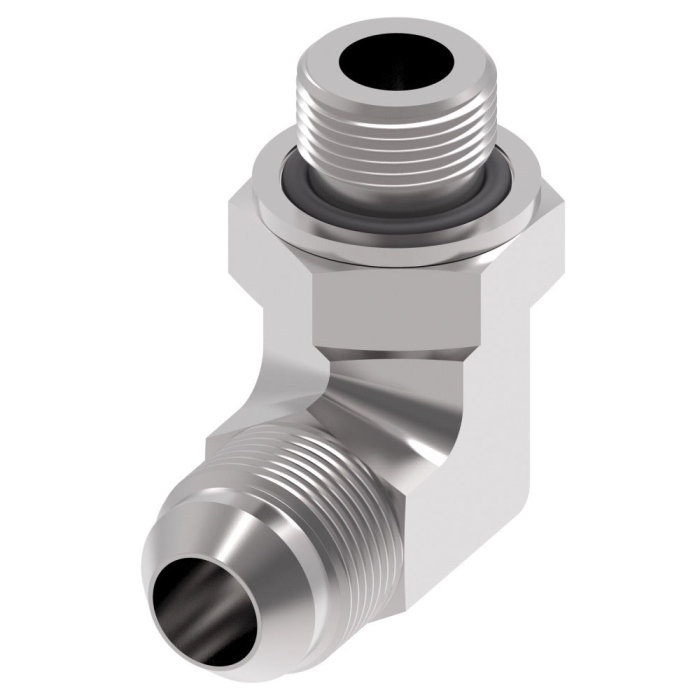

Aeroquip® GG306 Dura-Kote Carbon Steel 90 deg Elbow, 1/8 in Male BSPP x 1/4 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER GG306-NP04-02
  • MPN: GG306-NP04-02
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® GG306 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 1/8 in, Gender 1: Male, Connection Type 1: BSPP x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC, -65 to 400 deg F

Series      :      GG306
Connection Size 1      :      1/8 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/8 in BSPP
Shape      :      90° Elbow
Connection 2      :      1/4 in JIC
Thread Size 1      :      G 1/8-28
Thread Size 2      :      7/16-20
Finish      :      Dura-Kote
Length      :      1.265 in
Fitting Type      :      90 deg Elbow
Width      :      0.55 in
Height      :      1.115 in
Hex Size      :      0.43 x 0.55 in
Material      :      Carbon Steel
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      BSPP
Connection Type 2      :      JIC

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
