Aeroquip® GG308-NP08-18
Send Print
  1. pin-int

Aeroquip® GG308-NP08-18

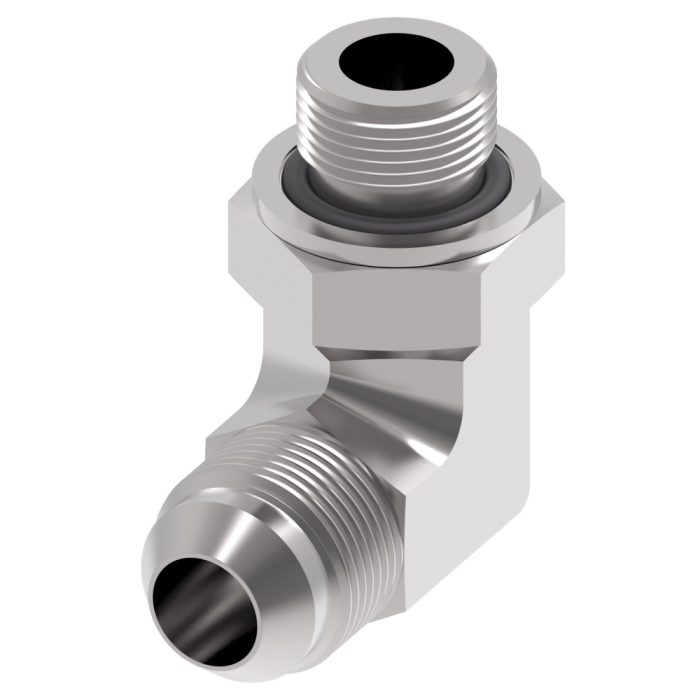

Aeroquip® GG308 Dura-Kote Carbon Steel 90 deg Elbow, 18 mm Male Metric Port x 1/2 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER GG308-NP08-18
  • MPN: GG308-NP08-18
  • Alt. MPN: 7205-08-18-NWO-FG
  • UPC: 678146190758
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® GG308 Dura-Kote Carbon Steel 90 deg Elbow, Connection Size 1: 18 mm, Gender 1: Male, Connection Type 1: Metric Port x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: JIC, -40 to 250 deg F

Series      :      GG308
Connection Size 1      :      18 mm
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      18 mm
Shape      :      90° Elbow
Connection 2      :      1/2 in JIC
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      3/4-16
Finish      :      Dura-Kote
Length      :      1.615 in
Fitting Type      :      90 deg Elbow
Width      :      0.94 in
Height      :      1.815 in
Hex Size      :      0.75 x 0.94 in
Material      :      Carbon Steel
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      Metric Port
Connection Type 2      :      JIC
