Brennan 1503-16-12-FG THA 1503-16-12 | Tipco Technologies
Brennan 1503-16-12-FG
Send Print
  1. pin-int

Brennan 1503-16-12-FG

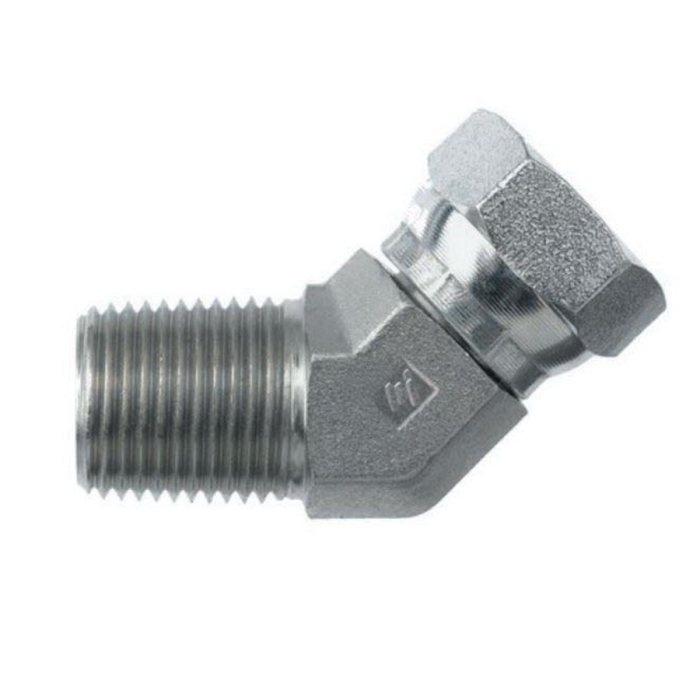

Brennan 1503 Forged Steel 45 deg Elbow, 1 in Male NPT x 3/4 in Female NPSM

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 1503-16-12
  • MPN: 1503-16-12-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 1503 Forged Steel 45 deg Elbow, Connection Size 1: 1 in, Gender 1: Male, Connection Type 1: NPT x Connection Size 2: 3/4 in, Gender 2: Female, Connection Type 2: NPSM, 2250 psi

Series      :      1503
Connection Size 1      :      1 in
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1 in NPT
Shape      :      45° Elbow
Connection 2      :      3/4 in NPSM
Thread Size 1      :      1-11-1/2
Thread Size 2      :      3/4-14
Dimension Standards      :      SAE 140330
Fitting Type      :      45 deg Elbow
Hex Size      :      1-1/4 in
Material      :      Forged Steel
Pressure Rating      :      2250 psi
Connection Type 1      :      NPT
Connection Type 2      :      NPSM
