Brennan 1504-04-04-FG

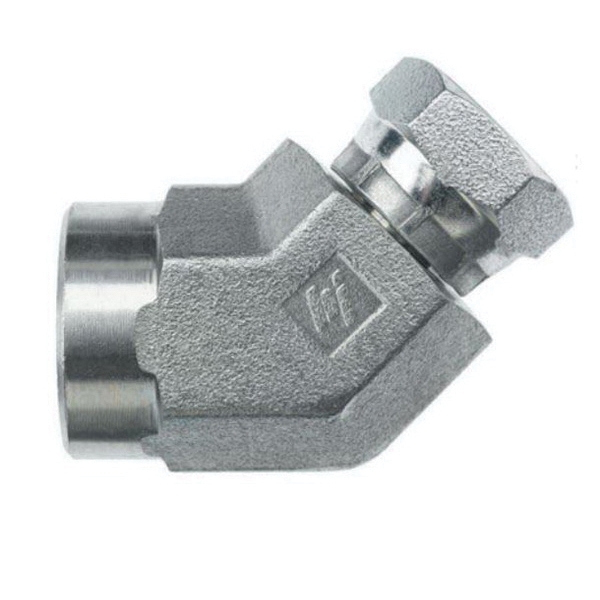

Brennan 1504 Forged Steel 45 deg Elbow, 1/4 in Female NPT x 1/4 in Female NPSM

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 1504-04-04
  • MPN: 1504-04-04-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 1504 Forged Steel 45 deg Elbow, Connection Size 1: 1/4 in, Gender 1: Female, Connection Type 1: NPT x Connection Size 2: 1/4 in, Gender 2: Female, Connection Type 2: NPSM, 5000 psi

Series      :      1504
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Gender 1      :      Female
Gender 2      :      Female
Connection 1      :      1/4 in NPT
Shape      :      45° Elbow
Connection 2      :      1/4 in NPSM
Thread Size 1      :      1/4-18
Thread Size 2      :      1/4-18
Dimension Standards      :      SAE 140331
Fitting Type      :      45 deg Elbow
Hex Size      :      0.688 in
Material      :      Forged Steel
Pressure Rating      :      5000 psi
Connection Type 1      :      NPT
Connection Type 2      :      NPSM
