Brennan 2501-06-08-FG

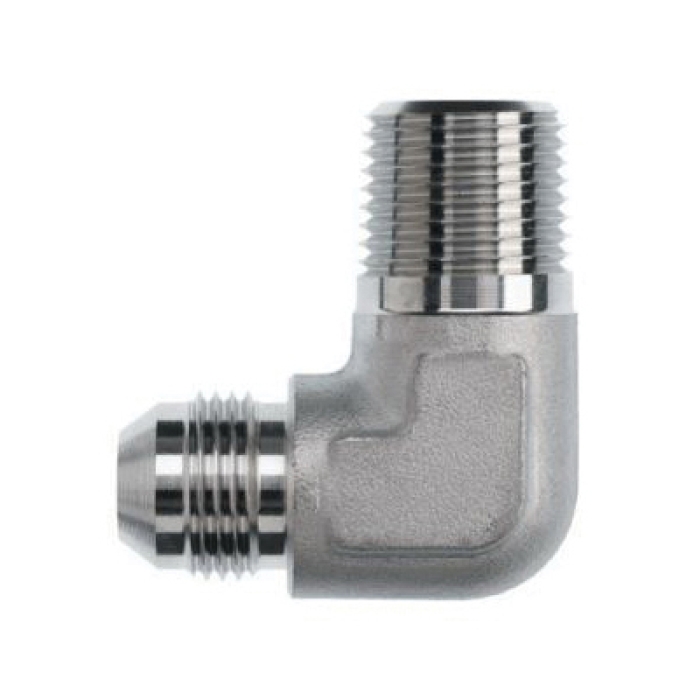

Brennan 2501-FG Forged Steel 90 deg Elbow, 3/8 in Male JIC x 1/2 in Male NPT

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 2501-06-08-FG
  • MPN: 2501-06-08-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 2501-FG Forged Steel 90 deg Elbow, Connection Size 1: 3/8 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: NPT, 6000 psi

Series      :      2501-FG
Connection Size 1      :      3/8 in
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/8 in JIC
Shape      :      90° Elbow
Connection 2      :      1/2 in NPT
Thread Size 1      :      9/16-18
Thread Size 2      :      1/2-14
Dimension Standards      :      SAE 070202, MS 51504
Fitting Type      :      90 deg Elbow
Hex Size      :      7/8 in
Material      :      Forged Steel
Pressure Rating      :      6000 psi
Connection Type 1      :      JIC
Connection Type 2      :      NPT
