Brennan 2501-12-16-FG THA 2501-12-16-FG | Tipco Technologies
Brennan 2501-12-16-FG
Send Print
  1. pin-int

Brennan 2501-12-16-FG

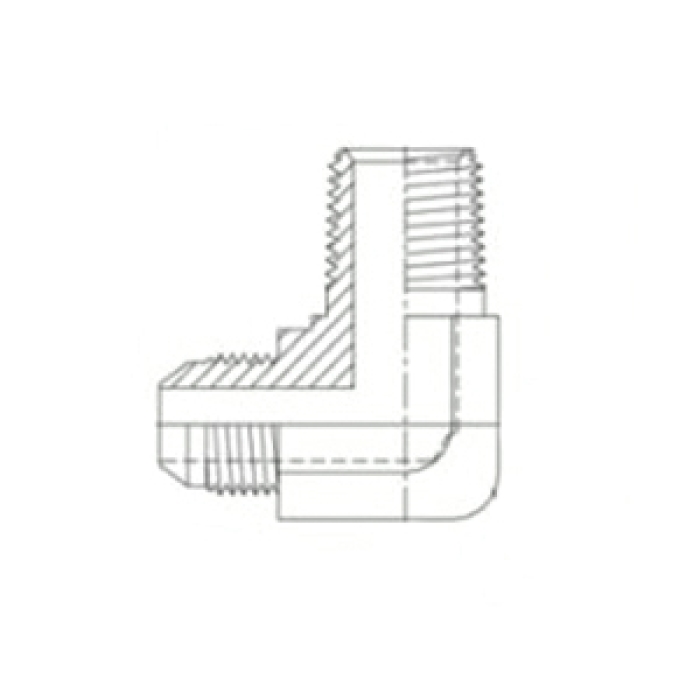

Brennan 2501 Forged Steel 90 deg Elbow, 3/4 in Male SAE 37 deg JIC x 1 in MNPTF

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 2501-12-16-FG
  • MPN: 2501-12-16-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 90 deg Elbow, Series: 2501, Connection Type 1: SAE 37 deg JIC, Gender 1: Male, Connection Size 1: 3/4 in, Thread Size 1: 1-1/16-12, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, 4500 psi, Forged Steel, Dimension Standards: MS 51504, SAE 070202

California residents see Prop 65 WARNINGS

Series      :      2501
Connection Size 1      :      3/4 in
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/4 in JIC
Shape      :      90 deg Elbow
Connection 2      :      1 in NPT
Thread Size 1      :      1-1/16-12
Thread Size 2      :      1-11-1/2
Dimension Standards      :      MS 51504, SAE 070202
Fitting Type      :      90 deg Elbow
Material      :      Forged Steel
Pressure Rating      :      4500 psi
Connection Type 1      :      SAE 37 deg JIC
Connection Type 2      :      NPTF
