Brennan 2701-16-16-FG

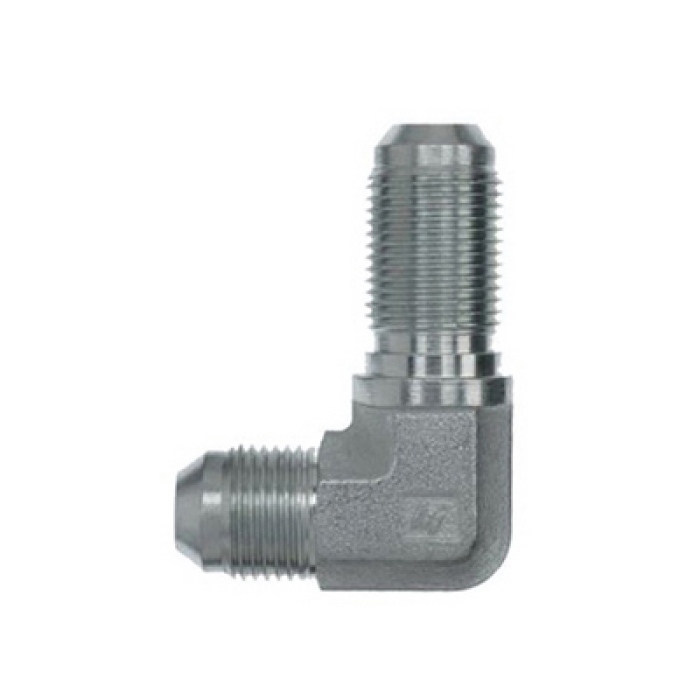

Brennan 2701 Forged Steel 90 deg Elbow, 1 in Male JIC x 1 in Male JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 2701-16-16-FG
  • MPN: 2701-16-16-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 2701 Forged Steel 90 deg Elbow, Connection Size 1: 1 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: JIC, 4000 psi

Series      :      2701
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1 in JIC
Shape      :      90° Elbow
Connection 2      :      1 in JIC
Thread Size 1      :      1-5/16-12
Thread Size 2      :      1-5/16-12
Dimension Standards      :      SAE 070701, MS 51507
Fitting Type      :      90 deg Elbow
Hex Size      :      1.312 in
Material      :      Forged Steel
Pressure Rating      :      4000 psi
Connection Type 1      :      JIC
Connection Type 2      :      JIC
