Brennan 6503-04-06-FG

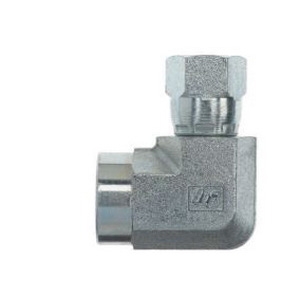

Brennan 6502-FG Forged Steel 90 deg Elbow, 3/8 in Female JIC x 1/4 in Female NPT

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6503-04-06-FG
  • MPN: 6503-04-06-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 6502-FG Forged Steel 90 deg Elbow, Connection Size 1: 3/8 in, Gender 1: Female, Connection Type 1: JIC x Connection Size 2: 1/4 in, Gender 2: Female, Connection Type 2: NPT, 5000 psi

California residents see Prop 65 WARNINGS

Series      :      6502-FG
Connection Size 1      :      3/8 in
Connection Size 2      :      1/4 in
Gender 1      :      Female
Gender 2      :      Female
Connection 1      :      3/8 in JIC
Shape      :      90° Elbow
Connection 2      :      1/4 in NPT
Thread Size 1      :      9/16-18
Thread Size 2      :      1/4-18
Fitting Type      :      90 deg Elbow
Hex Size      :      0.688 in
Material      :      Forged Steel
Pressure Rating      :      5000 psi
Connection Type 1      :      JIC
Connection Type 2      :      NPT
